Gallery XL Luminaire with 0-10V Dimming Track System Adapter
OTL94
- A revolutionary track head with superior optics designed to bring theatre grade beam control to traditional gallery and commercial track heads and mono-point luminaries

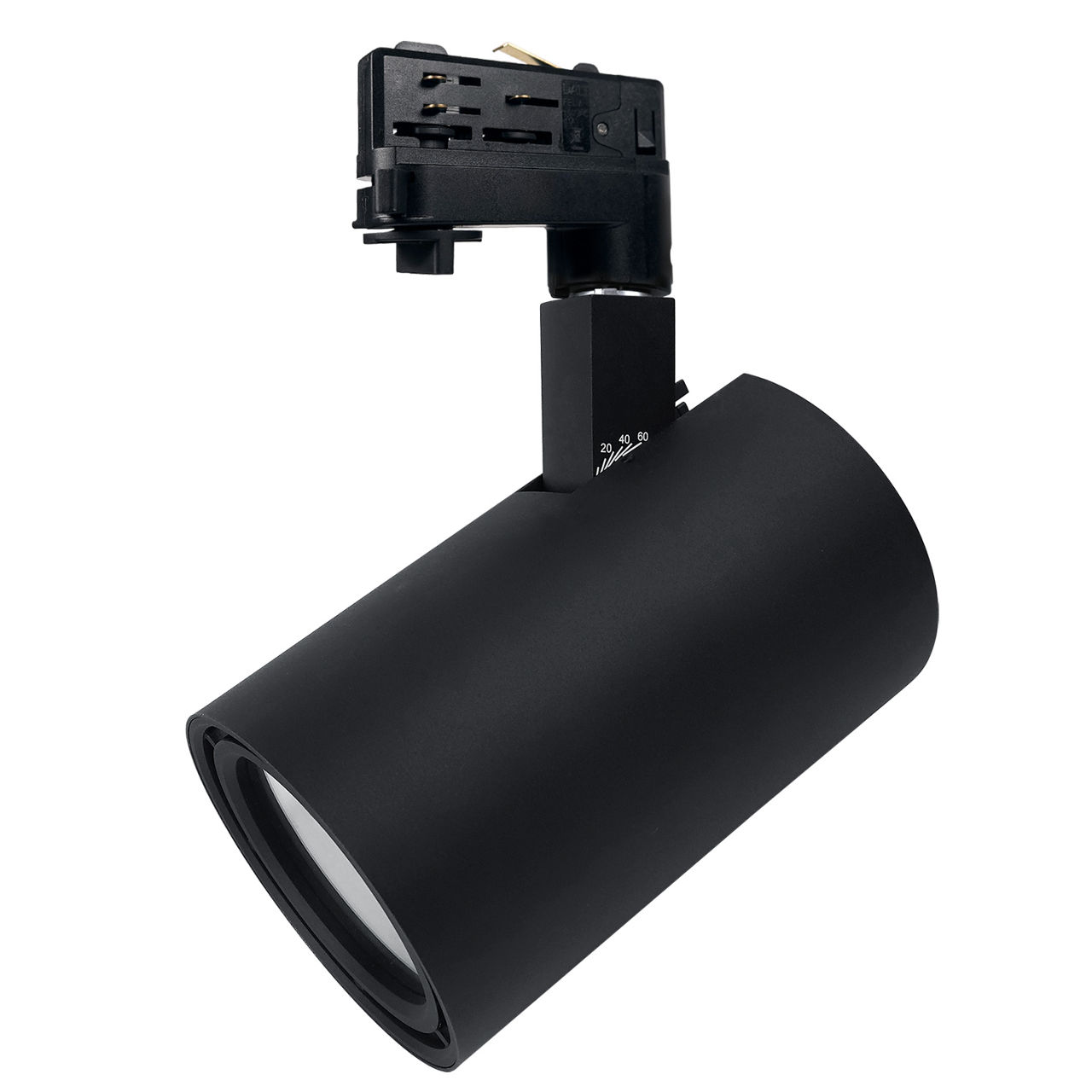

- Luminaires are constructed with an integrated adapter for use on the ConTech O2CD 0-10V Dimming Track System
- The die-cast aluminum cylindrical body provides thermal management
- Adjustable, lockable aiming arm with 0° to 100° tilt for precision aiming; 365° horizontal rotation
- Precision engineered Dual Lens Optic used for 8° Very Narrow Spot (VN) and 11°Narrow Spot (NS) beam distributions, providing a tight beam angle and field to highlight target objects with minimal stray illumination
- Specular Aluminum Reflectors used for 11° Spot, 22° Medium, 41° Flood, and 50° Wide Flood beam distributions; optically engineered for even illumination and glare control
- Can accept up to two (2) LF20 Lenses/Filters, LA-45 Honeycomb Louver, FA-94 Snoot or BD94-B Black Barn Doors, ordered separately. Snoot or Barn Door count as one (1) piece.
- 2700K, 3000K, 3500K and 4000K color temperatures;
- 80 CRI minimum, 83 typical; high CRI of 90+ available
- Excellent fixture-to-fixture color consistency within a 3-step MacAdam Ellipse tolerance
- Precise beam control ensures that even at lower aiming angles, the luminaire is glare free and quiet in the ceiling
- Full collection of accessories to produce a myriad of filtering and framing effects
- Dimming allows smooth illumination down to 1%
Product Information
Product Features
Color Rendering Index : 80-89,90-100
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Dimming Technology : Forward Phase (120V Only),Reverse Phase (120V Only)
Light Distribution Detail : Very Narrow Spot,Narrow Spot,Spot,Medium,Flood,Wide Flood
Light Source : LED
Lumen Output : 500-1000,1001-1500,1501-2000,2001-3000,3001-4000,4001-5000
Product Type : LED Track Luminaire

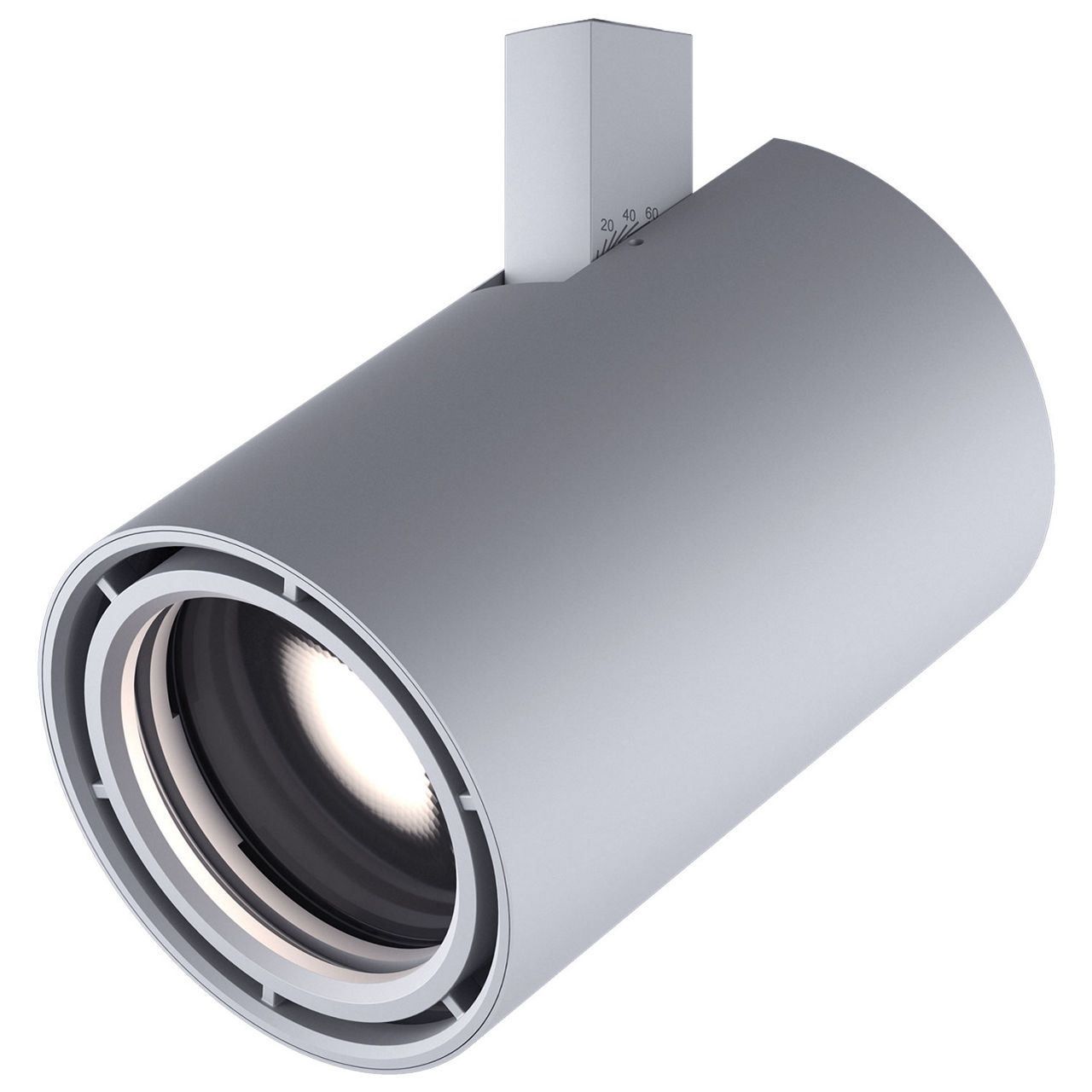

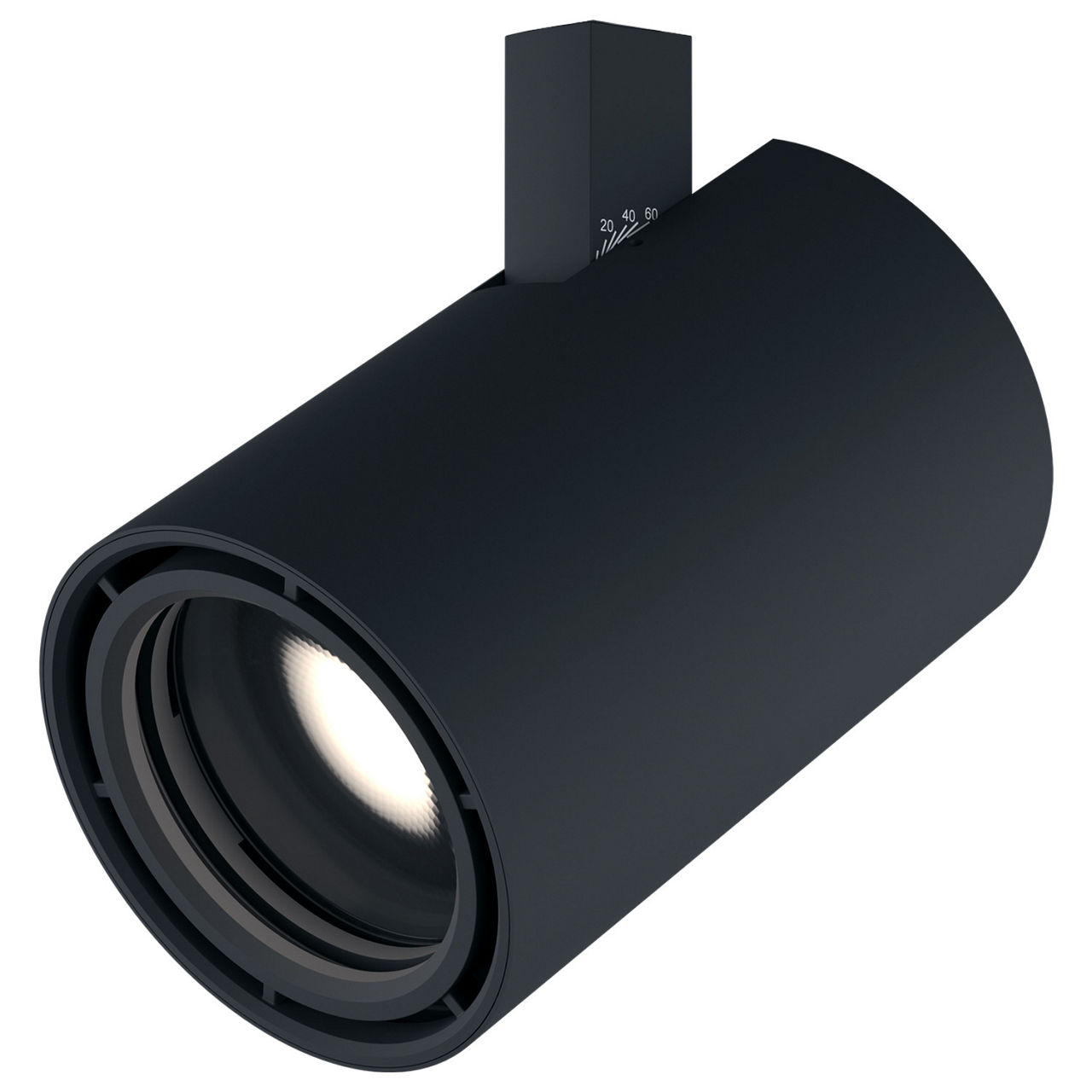

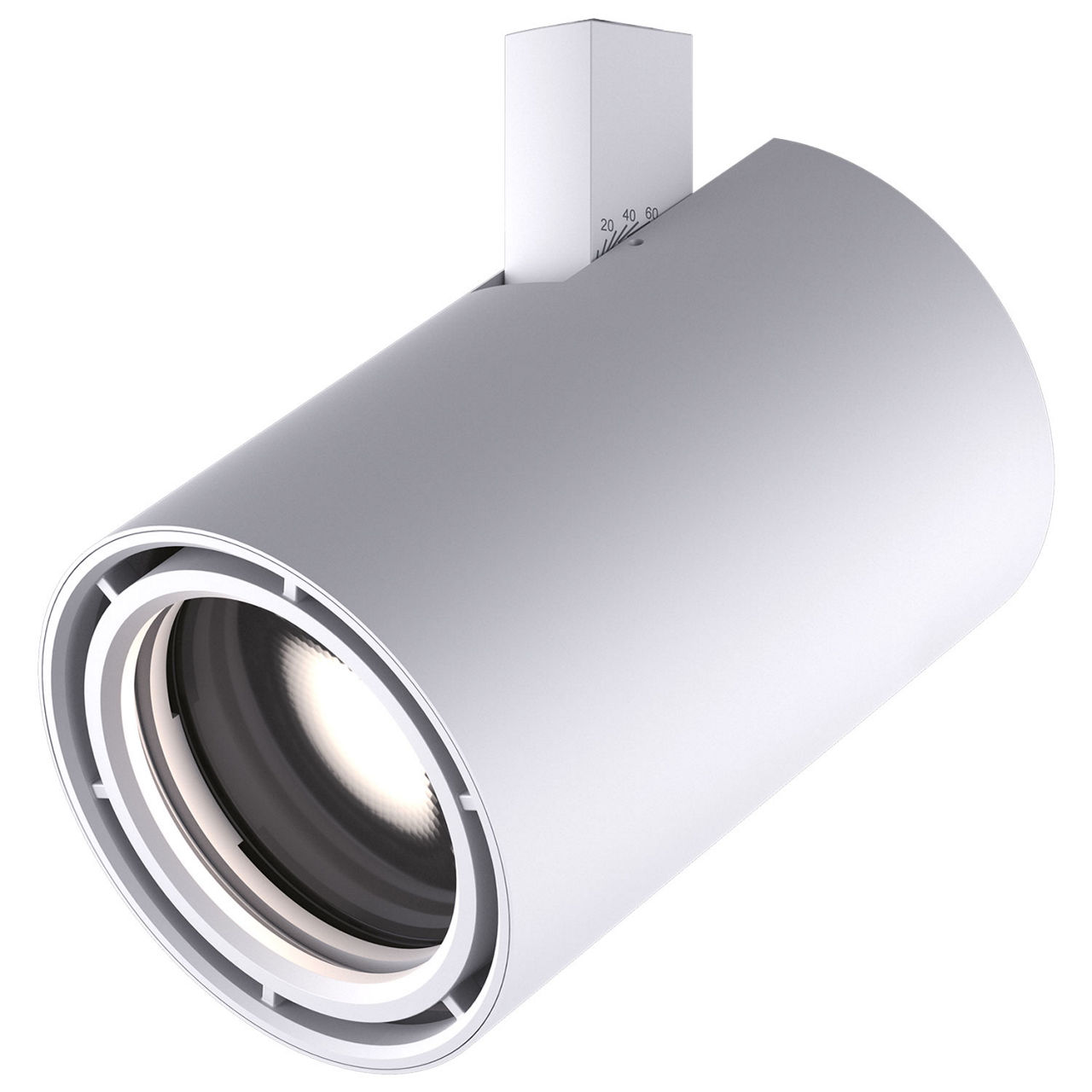

Finish : Black,White,Silver
Environment : Dry Location
Voltage : 120V
Wattage : 11W - 20W,21W - 30W,31W - 40W,41W - 50W
Use With : 0-10V Dimming Track (O2CD)
Family : Gallery XL
