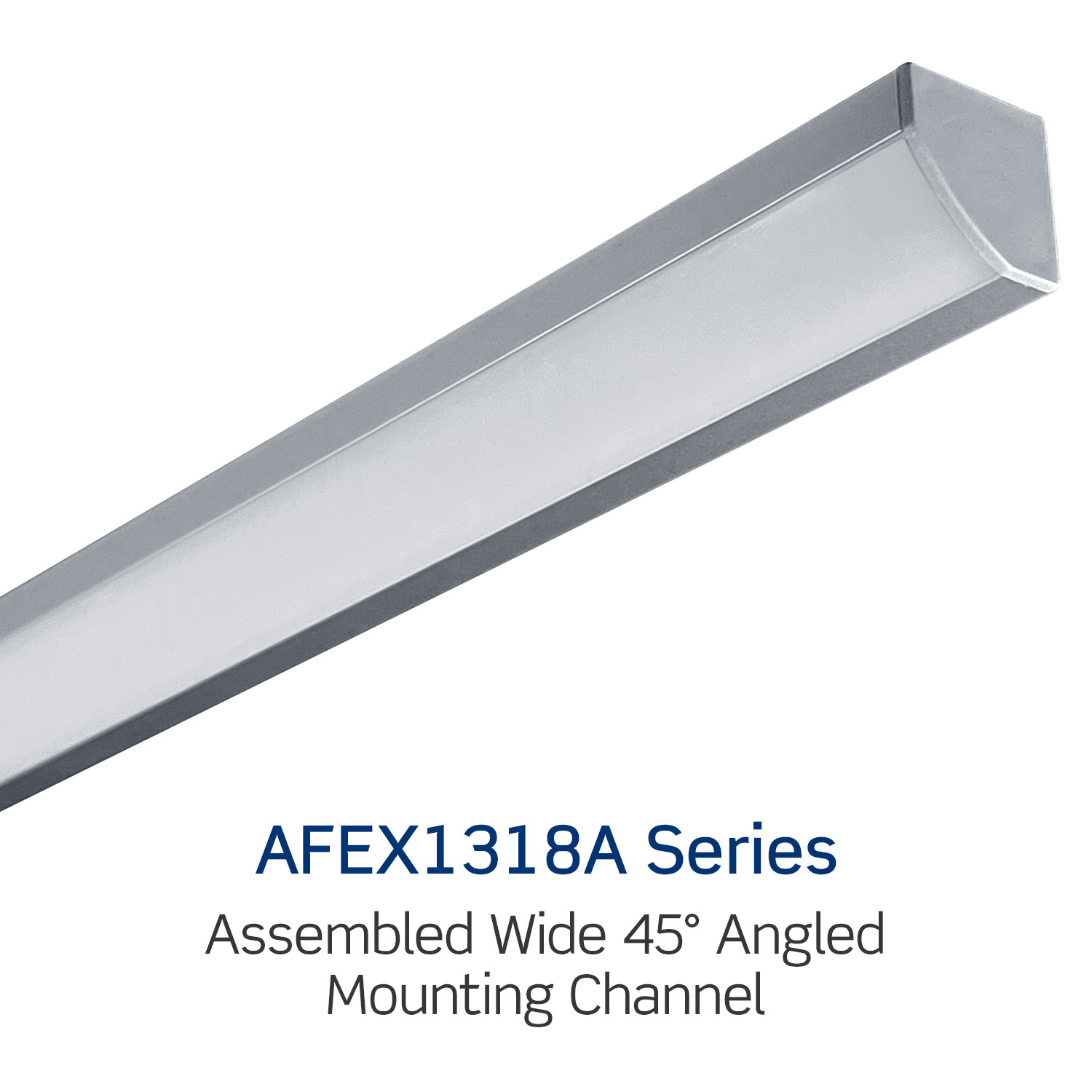

45° Angled Wide Surface Mounting Channel

AFEX1318A Series

  • Provides excellent heat sinking and protection to the LEDs while ensuring a clean, straight run

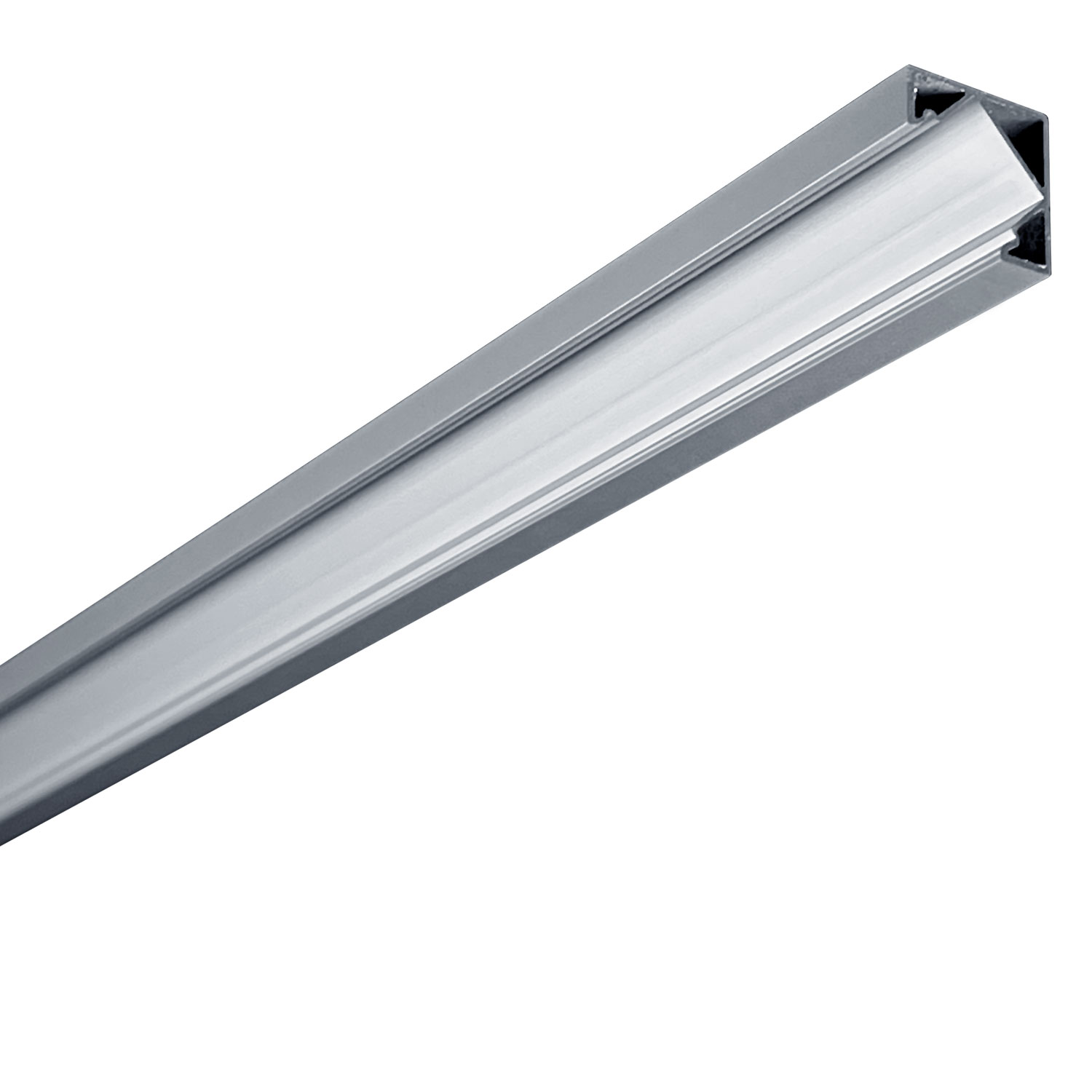

  • Anodized Satin Aluminum Channel; 72-Inches long
  • Components (Ordered Separately):

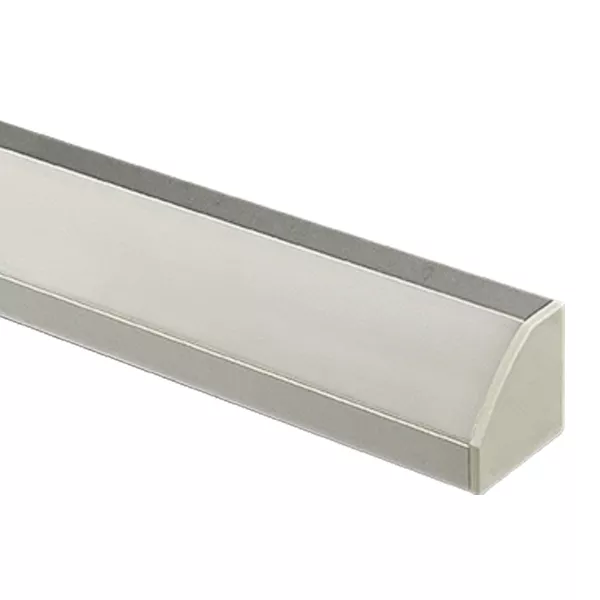

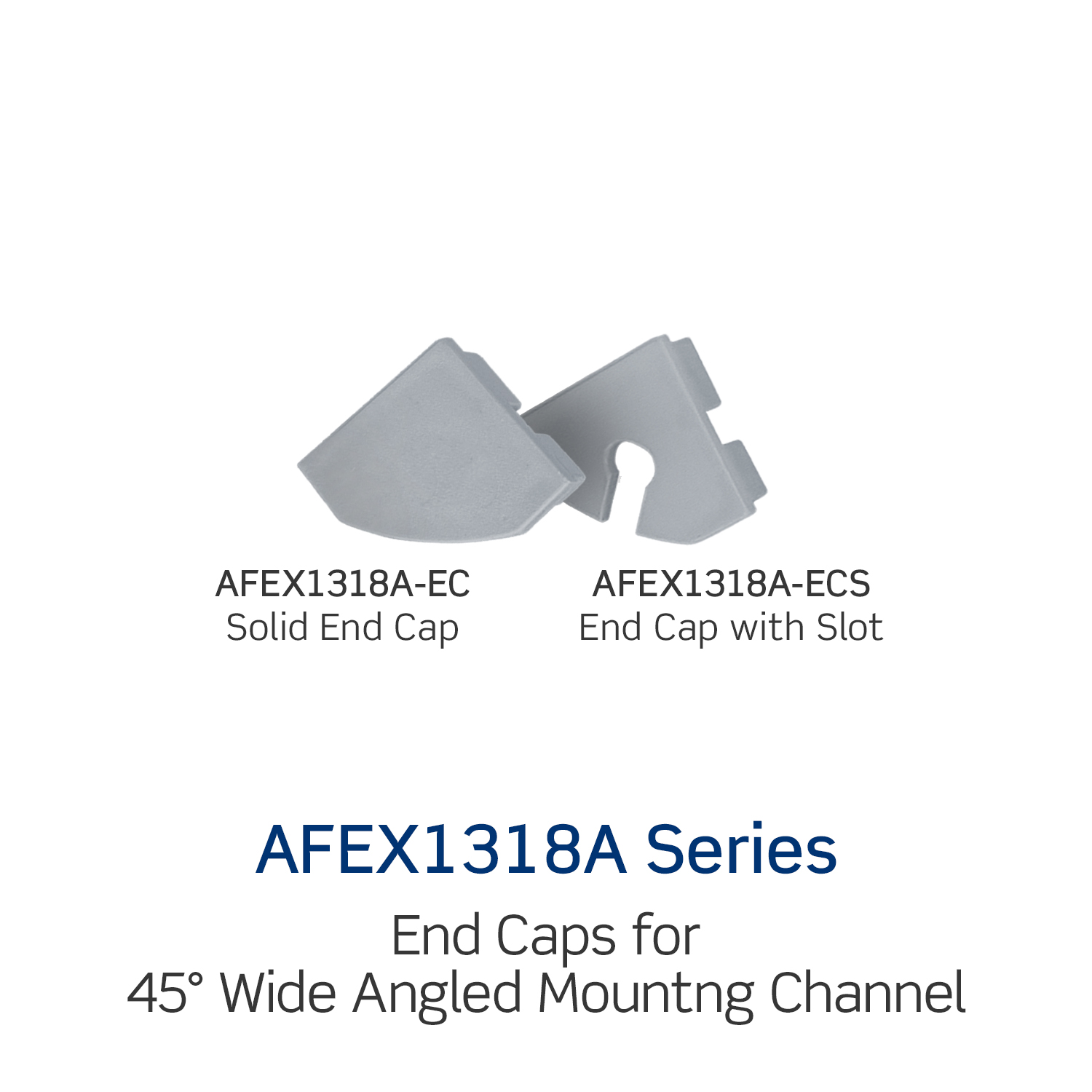

    AFEX1318A-EC: Solid Endcap, Grey
    AFEX1318A-ECH: Slotted Endcap, Grey
    - ABS Grey Plastic
    - Ordered individually

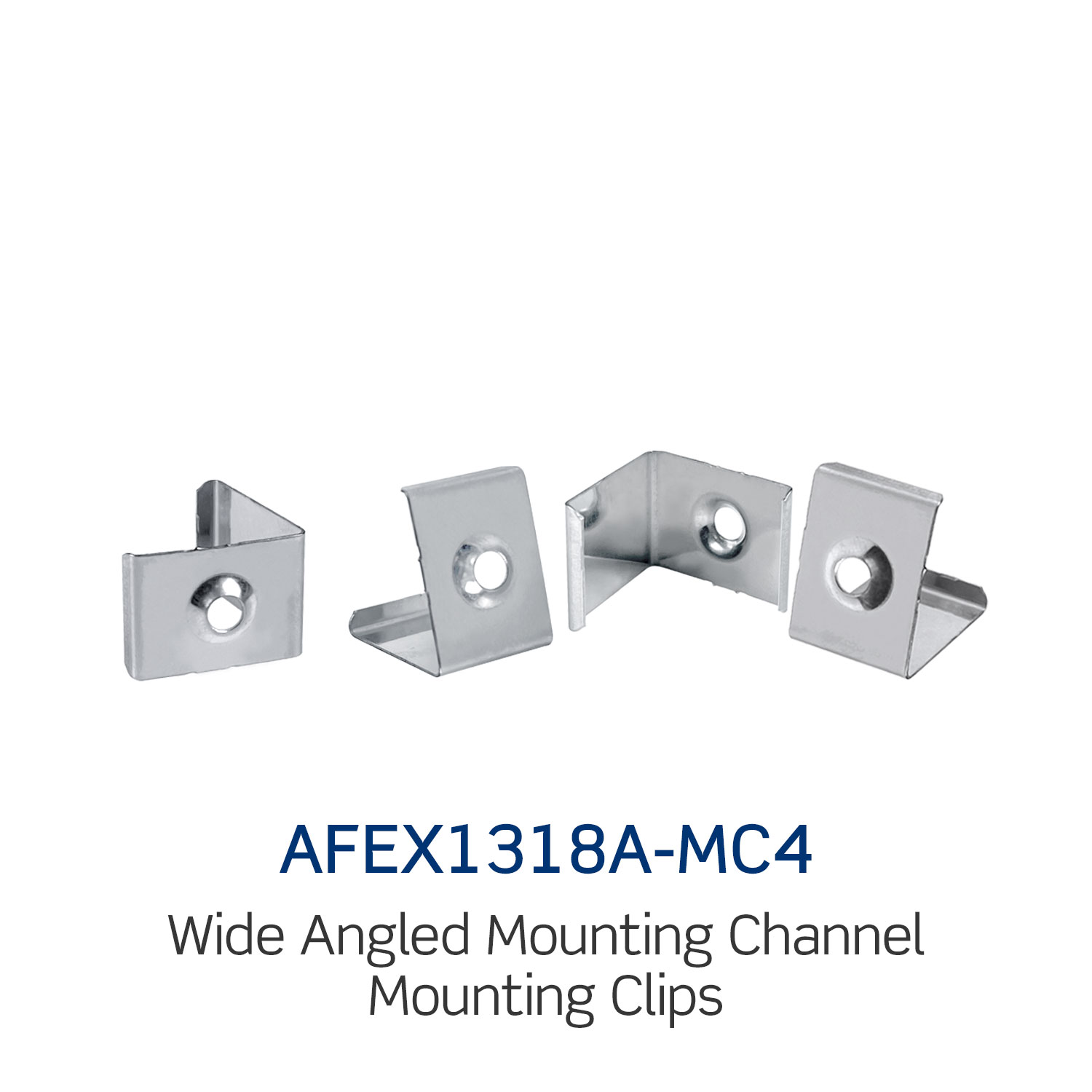

    AFEX1318A-MC4: Standard Mounting Clips
    - Stainless Steel, set of four (4)
    - 24-Inches between Clips recommended for most applications

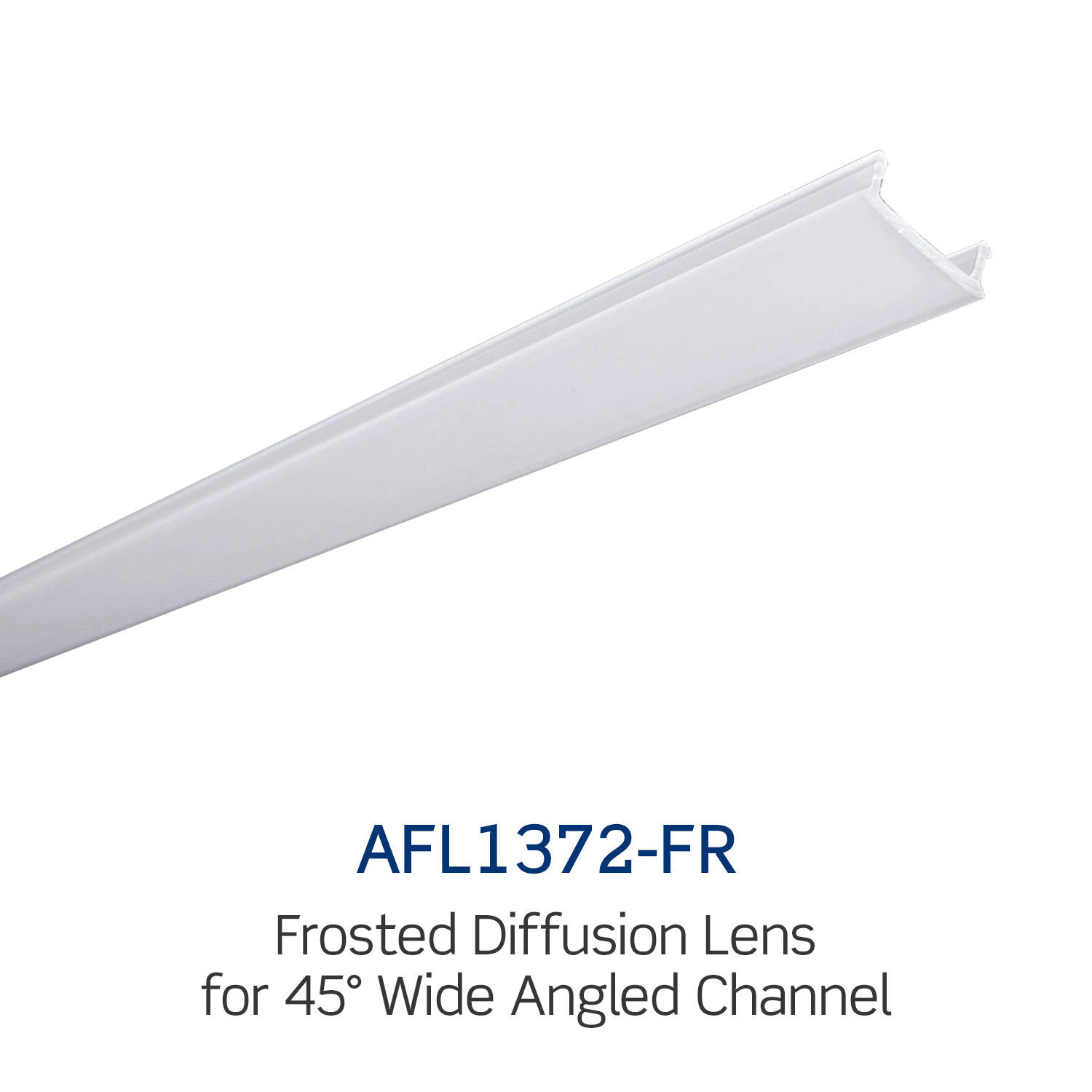

    AFL1372-FR: Frosted Diffusion Lens
  • Compatible with:

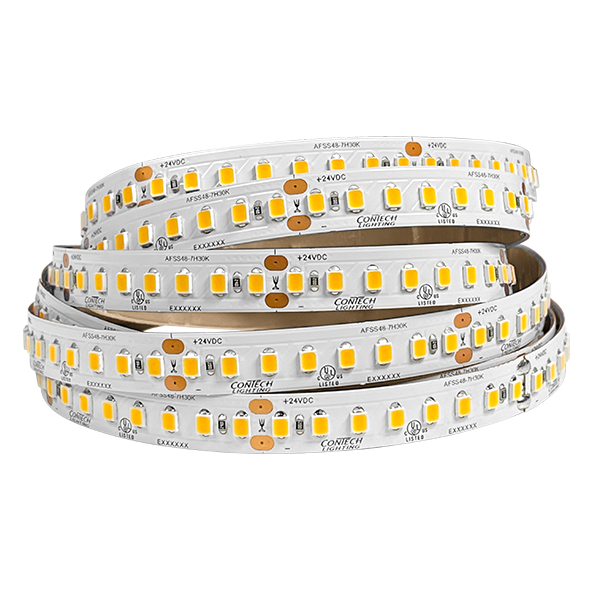

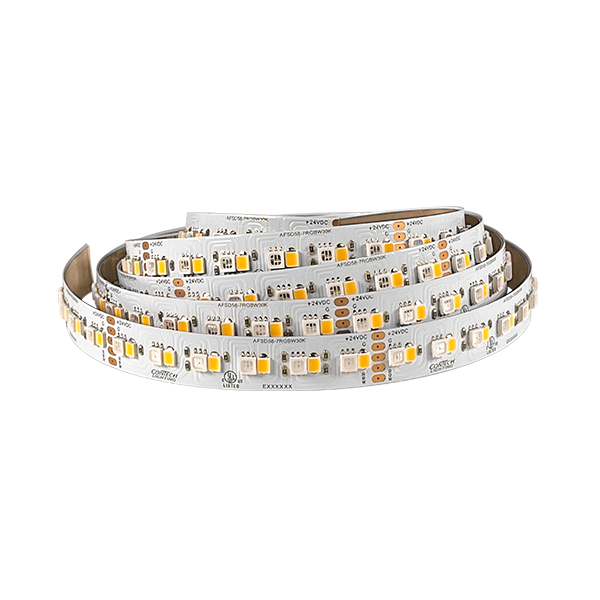

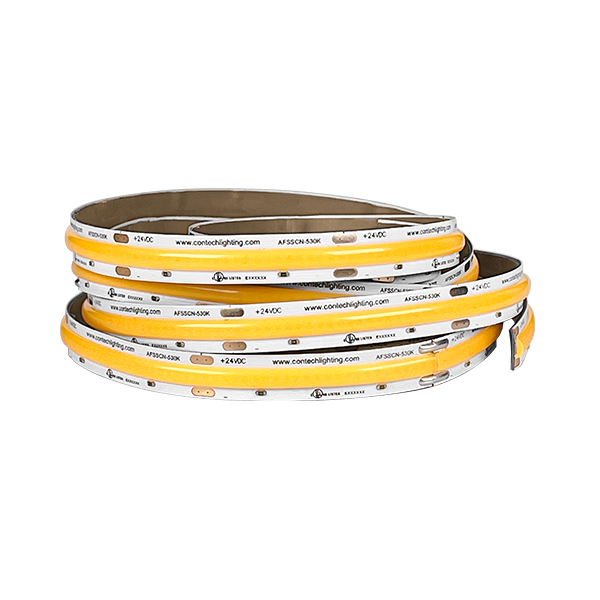

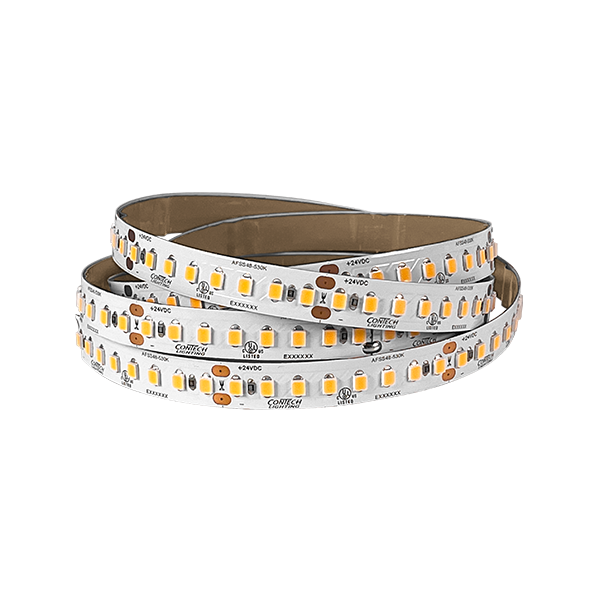

    DRY LOCATION - AFSS48 Series, AFSS48-7H Series, AFSS73 Series, AFSSCN Series, AFSS42 Series, AFSD36 Series, and AFSD58 Series
  • For 24V SpecFlex Series Strip Lighting only

Product Information

  • Product Features

    Product Type : Mounting Channel

    Mounting Type : Surface

    Series Compatibility : SpecFlex

    Product Category : Strip Lighting

    Works With : AFSS48,AFSS48-7H,AFSS73,AFSSCN,AFSS42,AFSD36,AFSD58

    Feature : Angled Wide

    Environment : Dry Location
