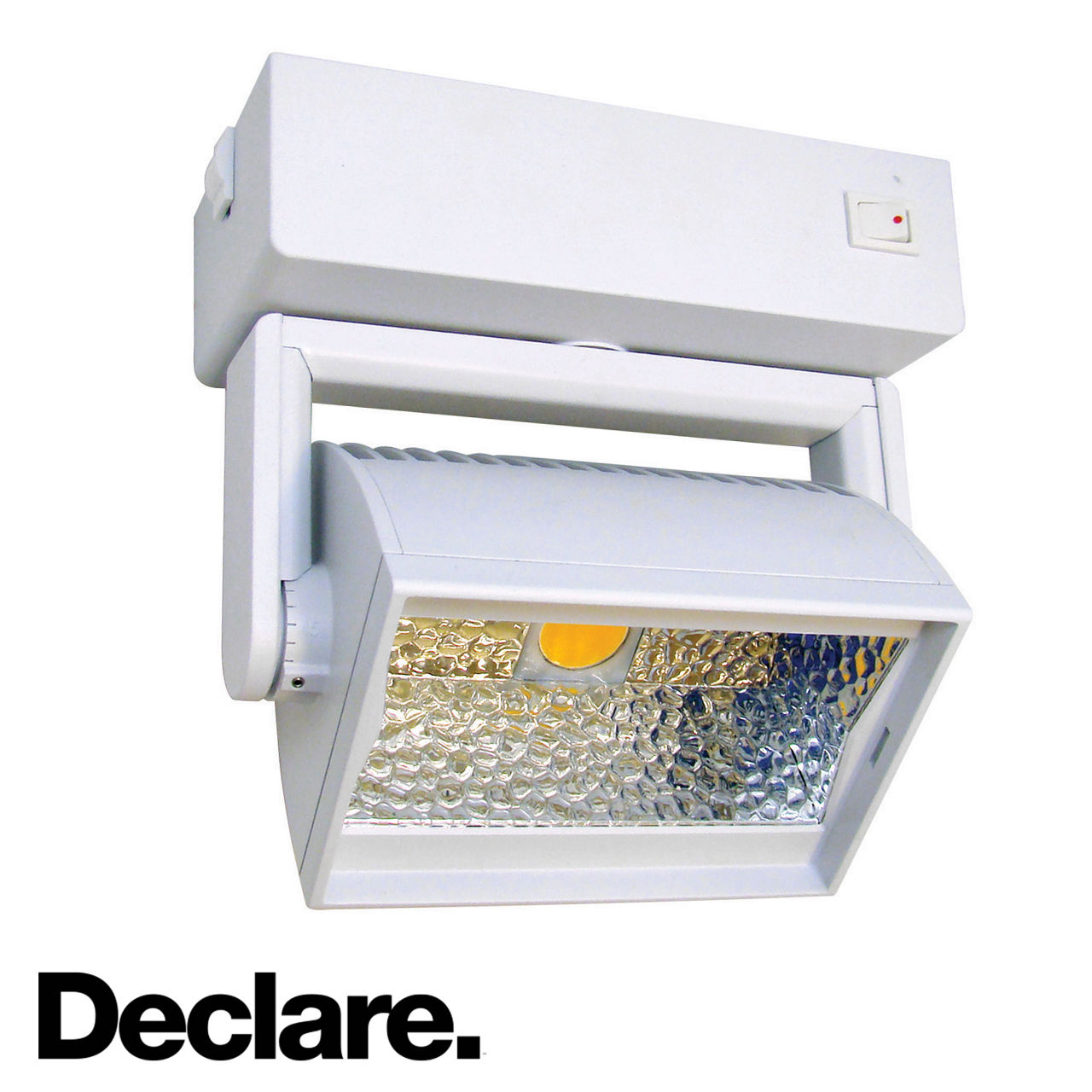

Stealth Horizontal Mount Wall Lighter Luminaire
CTL18 H
- Cast and finned aluminum heatsink has been thermally engineered to provide optimal heat dissipation ensuring long life and consistant performance
- Smooth, wide beam provides excellent uniformity; well suited for any wall lighting application
- Available in six (6) wattage/lumen options; 83 CRI (80min), 90+ CRI available
- Excellent fixture to fixture color consistency within a 3-step MacAdam Ellipse tolerance
- Lockable, precision aiming adjustment: 360°+ aiming horizontal, 220° vertical rotation
- Incandescent, Forward Phase and TRIAC Dimming are available for 120V only, for additional information, please consult factory. For dimmer compatibility, refer to Dimming Specification sheet.
- Can accept up to two (2) media by using the FA-18 Accessory Holder, FA-48 Snoot, FA-51 Visor or BD18 Barn Doors
- Integral ON/OFF switch and track polarity indicator are standard
- cCSAus Certified to UL Standards on Base Models; Suitable for Dry Locations
- Declare Labeled for use with the Living Building Challenge
- CTL180H3D in all finishes is DLC Listed
Product Information
Updated
Product Features
Color Rendering Index : 80-89,90-100
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Driver Orientation : Horizontal
Light Distribution Detail : Wall Lighter
Light Source : LED
Lumen Output : 2001-3000,3001-4000,4001-5000,5001-10000
Product Type : Track Head
