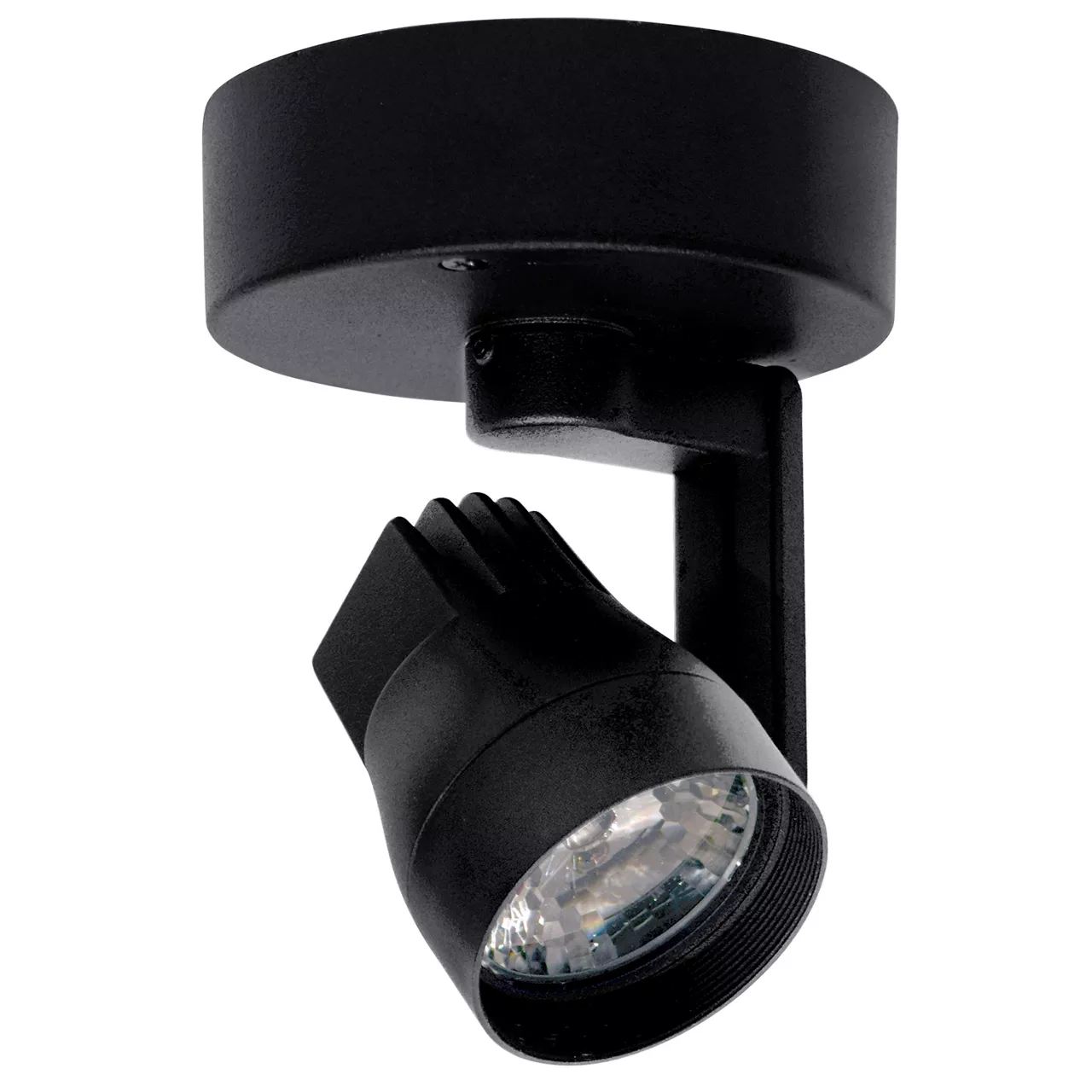

O2 Mini Canopy Mount LED Track Luminaire

CTL806 C

  • Constructed of die-cast aluminum, heat-sink and driver housing, may be ceiling or wall mounted
  • Available in three wattage/lumen packages: 10W/1000Lm, 14W/1400Lm and 20W/1800Lm
  • Lockable, precision aiming adjustment: 60°+ aiming horizontal rotation, 250° vertical rotation, 35° upward tilt (both directions)
  • Select from 2700K, 3000K, 3500K and 4000K color temperatures; CRI 80 min., 83 typical; high CRI 90+ available
  • A 3000K Crisp White LED is available, delivering 90+ color rendering with additional violet wavelengths that enhance white visibility
  • Excellent fixture-to-fixture color consistency within a 2-step MacAdam Ellipse tolerance
  • Available in 12° Spot, 28° Medium and 39° Flood beam distributions; optics have been optically engineered to provide a smooth uniform beam, maximizing output and minimizing glare
  • Optics can be easily changed in the field for optimal flexibility
  • Dimming is available and allows smooth illumination down to 1% utilizing Lutron HiLume or Lutron EcoSystem driver option; Lutron driver options require a larger canopy: 5-3/4" Dia. x 1-1/2" tall.
  • For dimmer compatibility, refer to Dimming Specifications sheet
  • The FA-43 Snoot/Accessory Holder can accept up to (2) LF16 60MM lenses or FA-16 60MM Black Honeycomb Louvers
  • Integral ON/OFF switch and track polarity indicator are standard
Country of Origin: Please Contact Customer Service

Product Information

  • Product Features

    Color Rendering Index : 80-89|90-100

    Correlated Color Temperature : 2700K|3000K|3500K|4000K

    Light Distribution Detail : Flood|Medium|Spot

    Light Source : LED

    Light Source Features : Crisp White

    Lumen Output : 1001-1500|1501-2000

    Mounting : Canopy

    Product Type : Track Head
