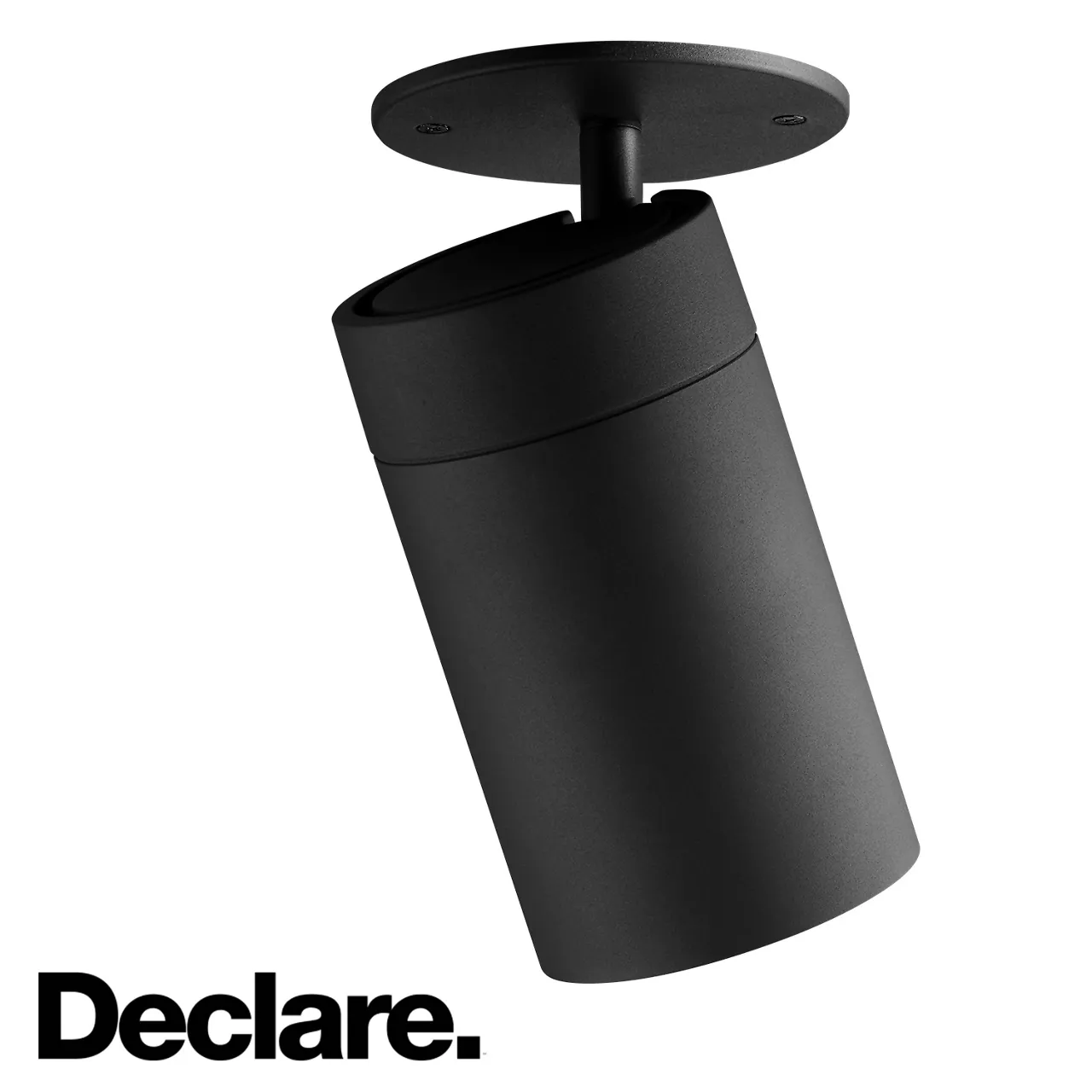

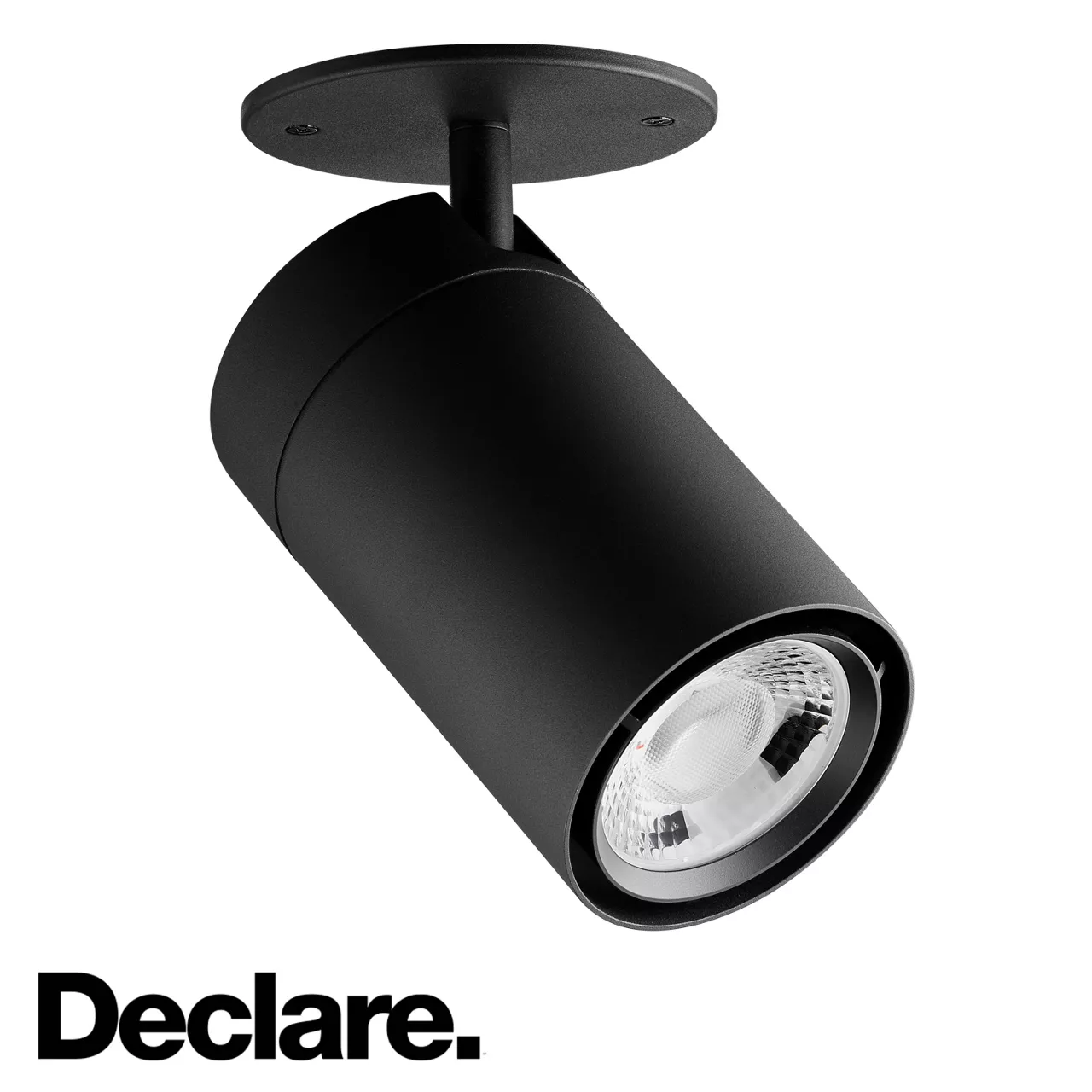

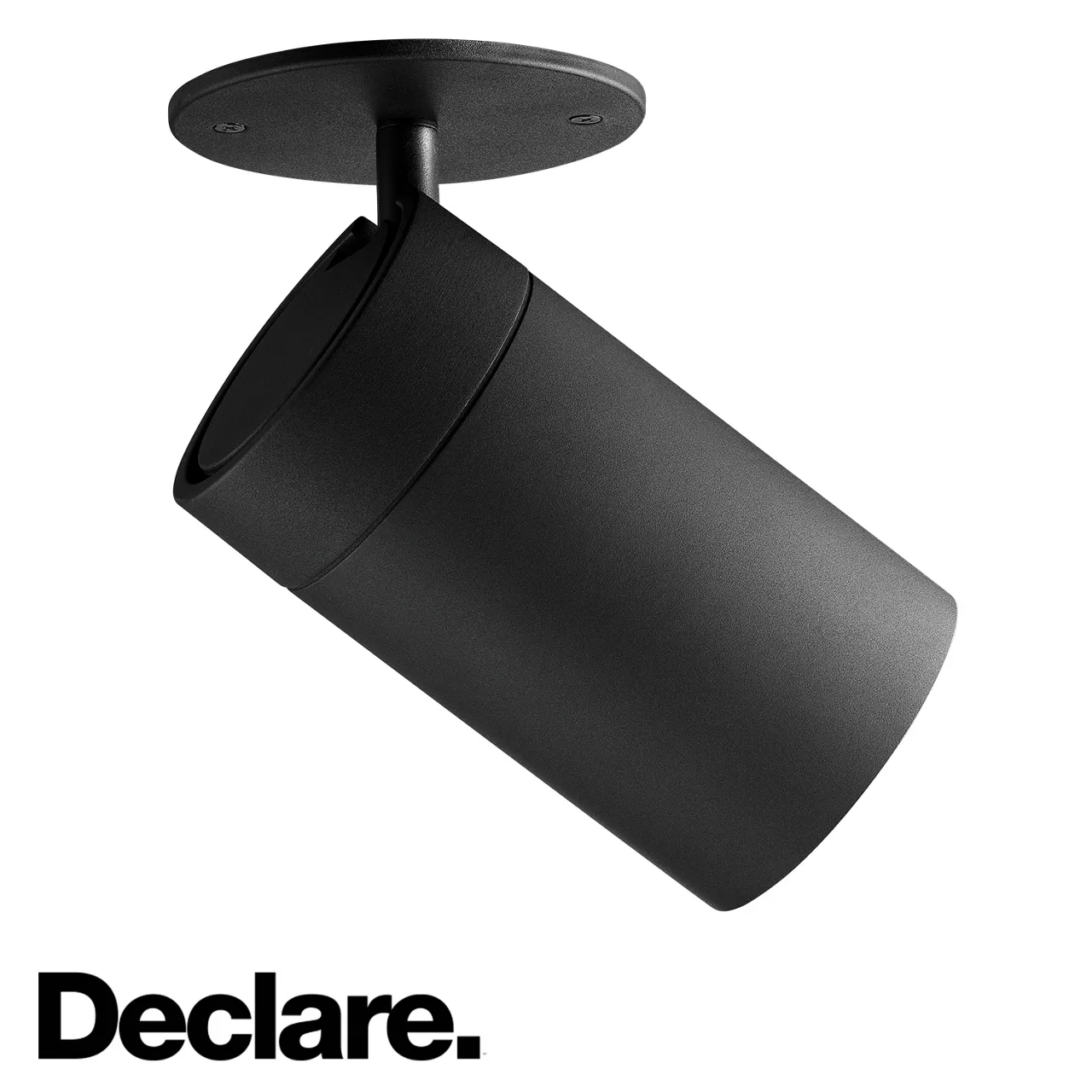

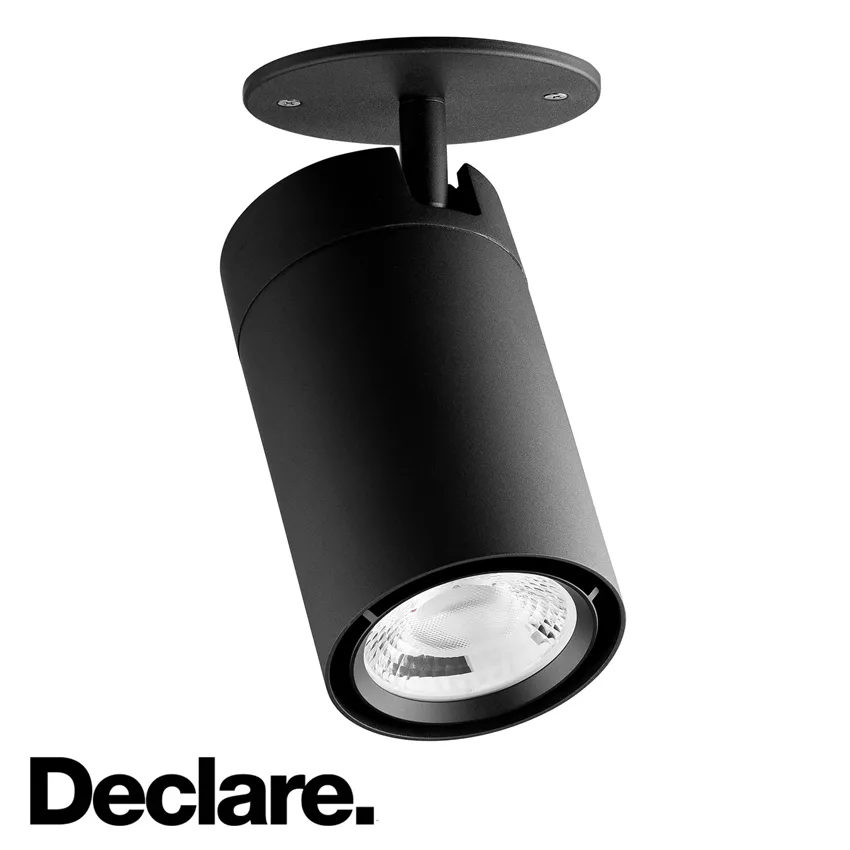

Eclipse Curve Mono-Point Luminaire
CTL905 Mono-Point Series
- Cylinder track luminaire family available in four body sizes from 2-3/8- to 3-15/16-inch diameter, 4-3/4- to 6-7/8-inch cylinder length
- Heatsink and Integrated Driver Housing for a sleek modern look
- Allows for precision aiming adjustment: 315° horizontal rotation and 90° vertical tilt
- Mounts to a standard recessed junction box
- Six wattages with delivered outputs ranging from 600 to 3400 lumens at 90+ CRI
- Available in 2700K, 3000K, 3500K and 4000K
- Molded TIR optics engineered to provide smooth uniform beams available in Spot, Medium, Flood and Wide Flood distributions
- Optics are interchangeable and can be field replaced, only upon the same size luminaire, not between luminaire sizes
- Optional accessories include snoots, barn doors, accessory holders, louvers and lenses
- Incandescent (Forward Phase) and ELV (Reverse Phase) Compatible
- Can be used to comply with the Title 24 Part 6 JA8 High Efficacy LED Light Source Requirements
- DLC® Listed
- Declare Certified
Product Information
Product Features
Color Rendering Index : 90-100
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Driver Orientation : Integrated
Light Distribution Detail : Spot,Medium,Flood,Wide Flood
Mounting Type : Mono-Point
Lumen Output : 501-1000,1001-1500,1501-2000,2001-3000,3001-4000
Listings : cETLus for Dry Locations,Title 24 Part 6 JA8,DLC® Listed,Declare Compliant
Dimming Technology : Incandescent (Forward Phase),ELV (Reverse Phase)
Product Type : Mono-Point
