Eclipse Curve Series Track Luminaire for use with Select Nordic Track Systems

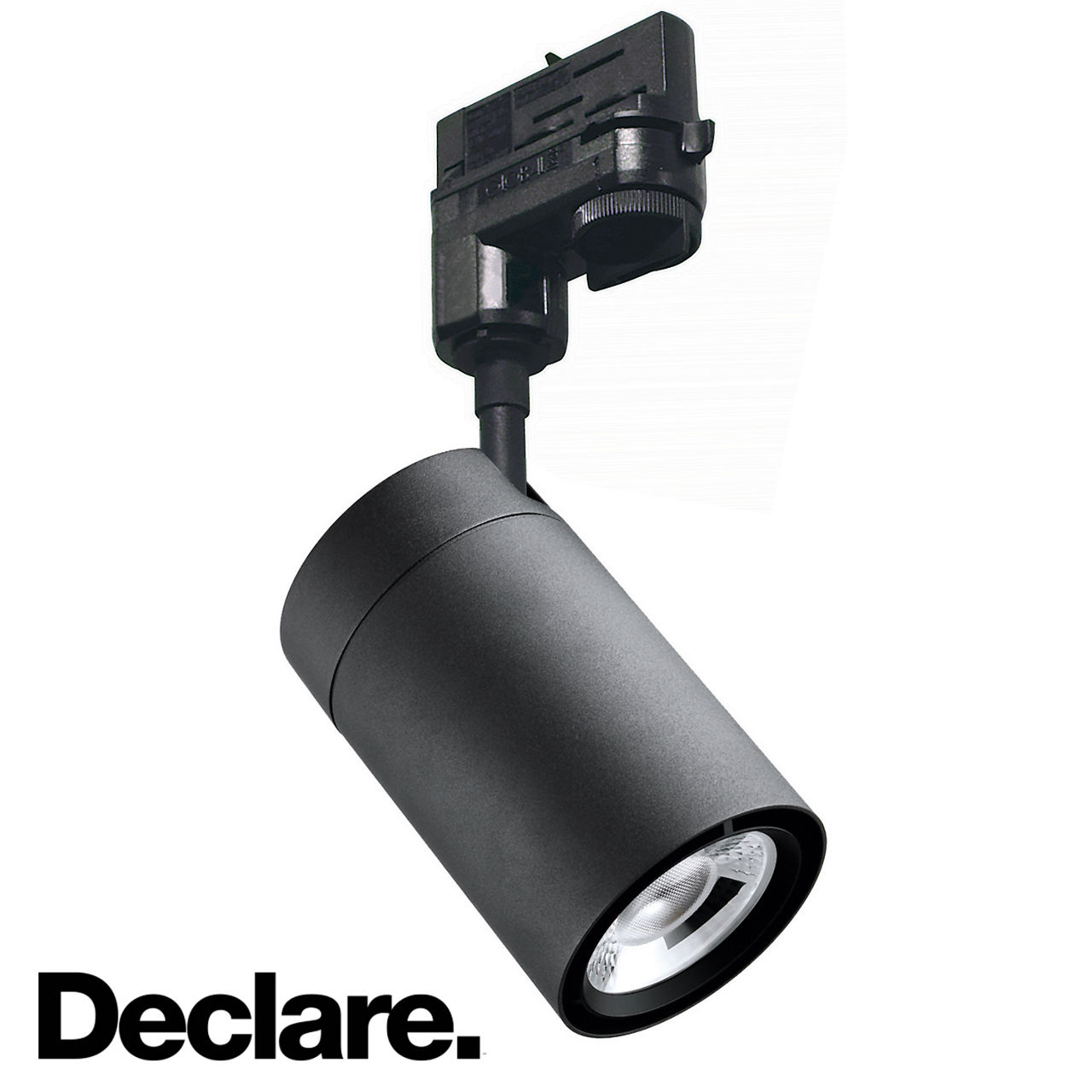

NCTL905 Eclipse Curve Track Mount Luminaire

  • For use with select Nordic Aluminum Inc. Track Systems
  • Cylinder track luminaire family available in four body sizes from 2-3/8- to 3-15/16-inch diameter, 4-3/4- to 6-7/8-inch cylinder length
  • Six wattages with delivered lumen outputs ranging from 650 to 3400 at 90+ CRI
  • Precision aiming adjustment: 315° aiming horizontal rotation, 90° vertical rotation
  • Available in 2700K, 3000K, 3500K and 4000K
  • Each molded TIR optic has been optically engineered to provide a smooth uniform beam, select from Spot, Medium, Flood and Wide Flood
  • Optics are interchangeable and can be field replaced, only upon the same size luminaire, not between luminaire sizes
  • Incandescent (Forward Phase) and ELV (Reverse Phase) compatible dimming available for 120V only
  • Optional accessories include snoots, barn doors, accessory holders, louvers and lenses
  • Compatible with Nordic Aluminum Inc. TEK100 Track Systems
  • ConTech can switch out the standard Nordic TEK00 adapter with either the GES66 or GA100 adapters for compatibility with other Nordic Aluminum Inc. Track Systems. For more information, please consult factory.
  • Can be used to comply with the Title 24 Part 6 JA8 High Efficacy LED Light Source Requirements
  • DLC® Listed
  • Declare Certified

Product Information

  • Product Features

    Color Rendering Index : 90-100

    Correlated Color Temperature : 2700K,3000K,3500K,4000K

    Driver Orientation : Integrated

    Light Distribution Detail : Spot,Medium,Flood,Wide Flood

    Mounting Type : Nordic Track Luminaire

    Lumen Output : 501-1000,1001-1500,1501-2000,2001-3000,3001-4000

    Product Type : Nordic Track Head

    Listings : cETLus for Dry Locations,Title 24 Part 6 JA8,DLC® Listed,Declare Compliant

    Dimming Technology : Incandescent (Forward Phase),ELV (Reverse Phase)
