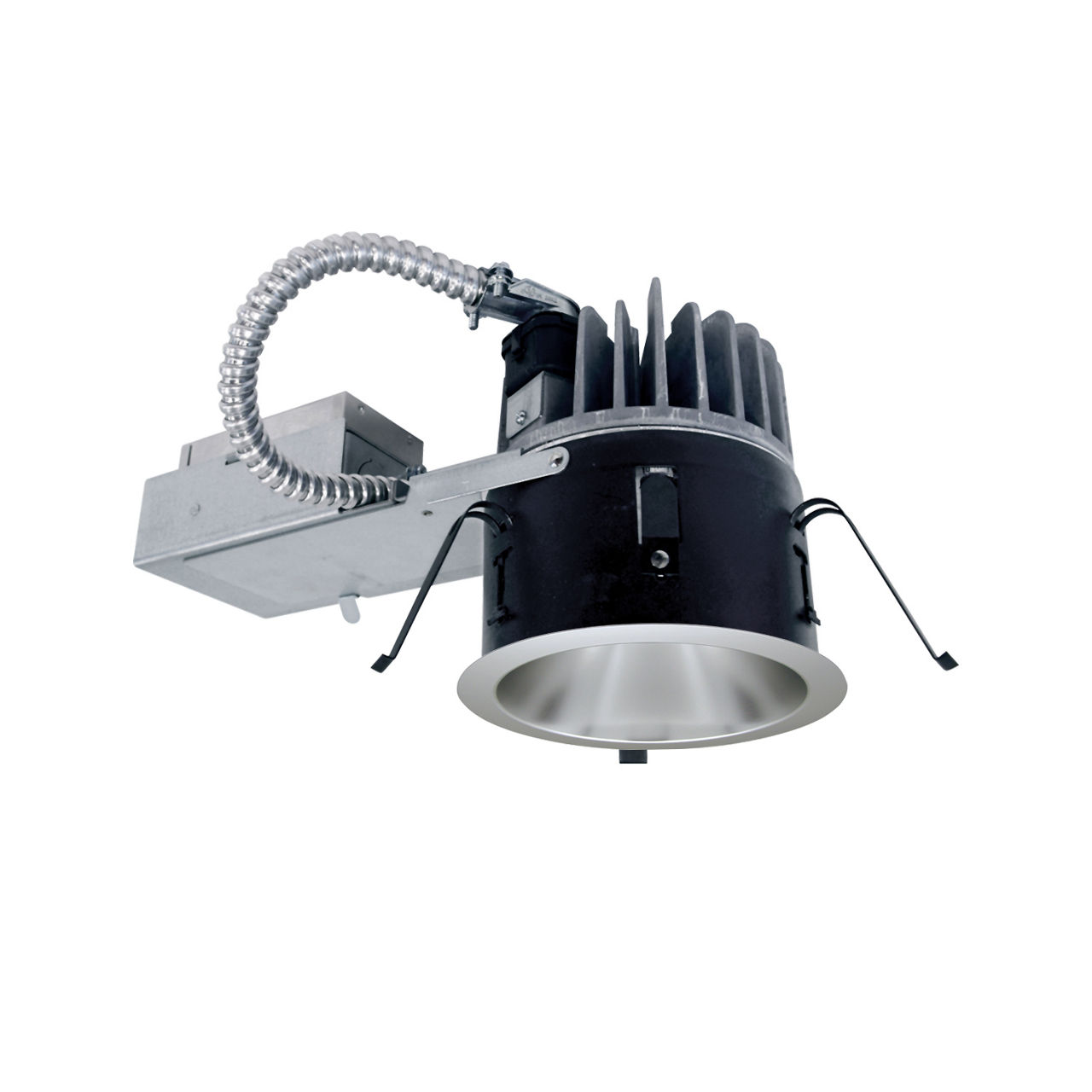

Remodel Downlight
R6RM
- Specification Grade, 6-inch Round, 16 Gauge Galvanized Steel, Remodel Housing with Die-Cast Aluminum Heat Sink
- Requires minimum 3-inch clearance around Housing from insulation material; thermal protection provided in case of improper insulation use
- Heavy Duty Steel Plaster Ring is secured to ceiling by three (3) Spring Clamps; LED Module/Trim Assembly is held in place with three (3) Trim-lock dimpled spring clips
- Quick-connect Light Engine; Drivers are fully accessible from below the ceiling and can be easily removed
- Approved for Through Circuit Wiring, output over-voltage, over-current and short circuit protection
- Select from six (6) wattage/lumen packages: 12W/1100Lm, 16W/1600Lm, 21W/2200Lm, 30W/3000Lm, 38W/3700Lm, and 45W/4100Lm
- Available in 2700K, 3000K, 3500K and 4000K color temperatures; CRI of 80 min., 83 typical; high CRI of 90+available
- All R6 Downlights are available for non-dimming and dimming applications; for compatible Dimmers, refer to the Dimming Specification Sheet
- Specification Grade Trims in several different styles and finishes
- Trimless options cannot be used on Remodel Style Housings (R6RM)
- UL8750 and Class 2 Compliant
- Suitable for Damp Locations
- All wattage/lumen options are ENERGY STAR® Certified; see Specification Sheet for Certified Trim and Dimming options
Product Information
Updated
Product Features
Product Category : 6-Inch Downlight
Color Rendering Index : 80-89,90-100
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Compliance : ENERGY STAR® Certified
Lumen Output : 1001-1500,1501-2000,2001-3000,3001-4000,4001-5000
Product Shape : Round
Product Type : Downlight
Environment : Damp Location
Wattage : 11W - 20W,21W - 30W,31W - 40W,41W - 50W
Voltage : 120V,277V,347V
Dimming Technology : Forward Phase,Reverse Phase,0-10V,Hi-lume,DALI,DMX
Trim Type : Self Flanged

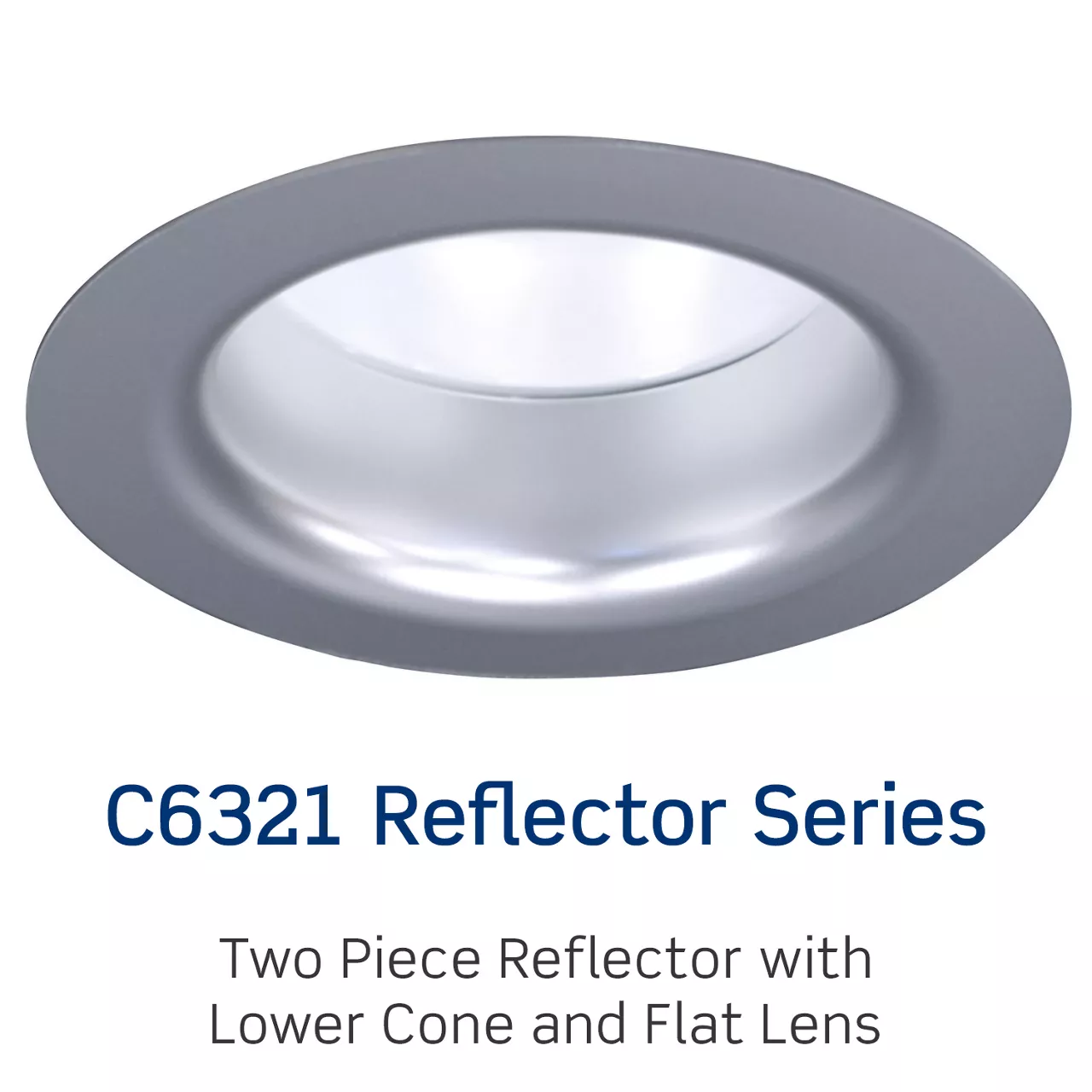

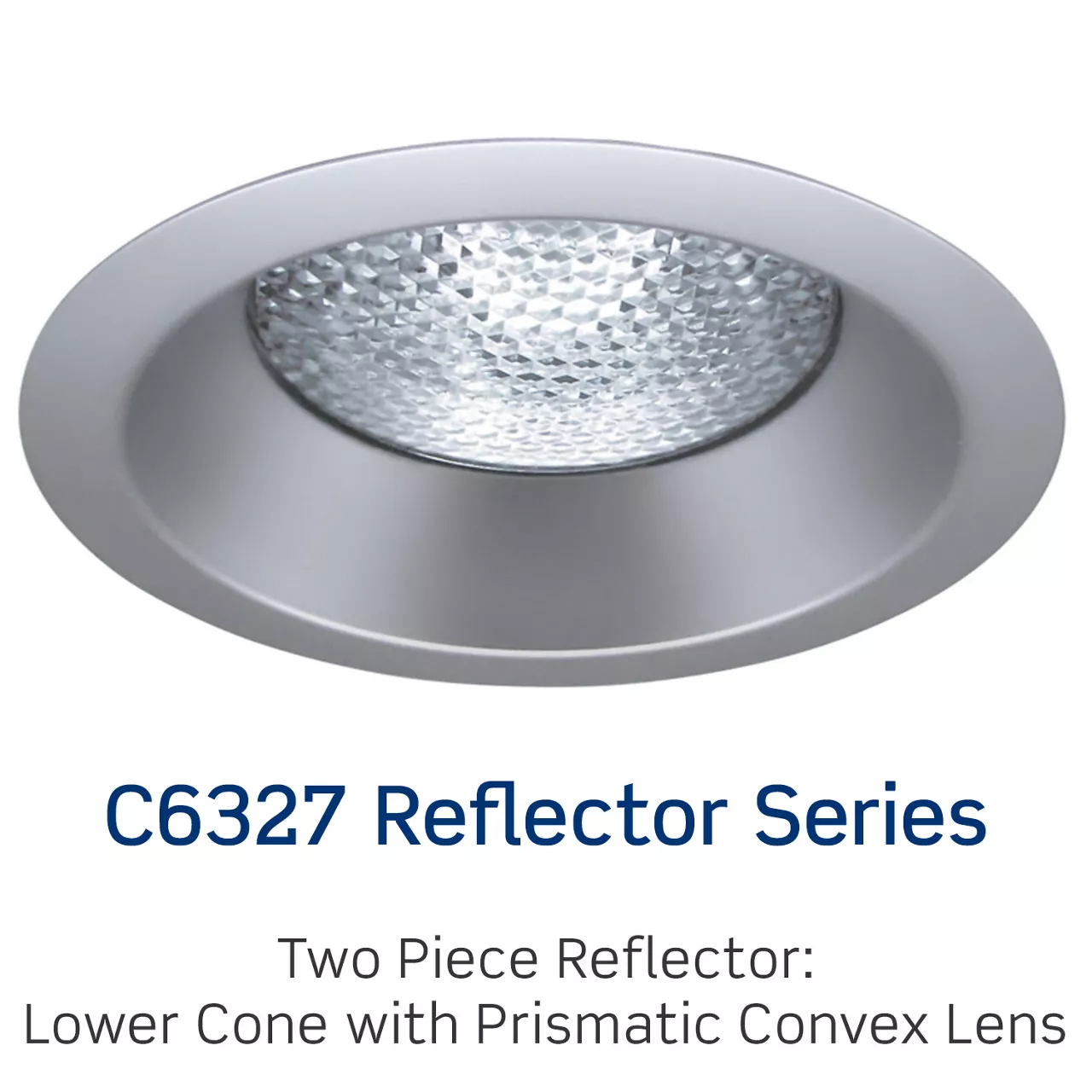

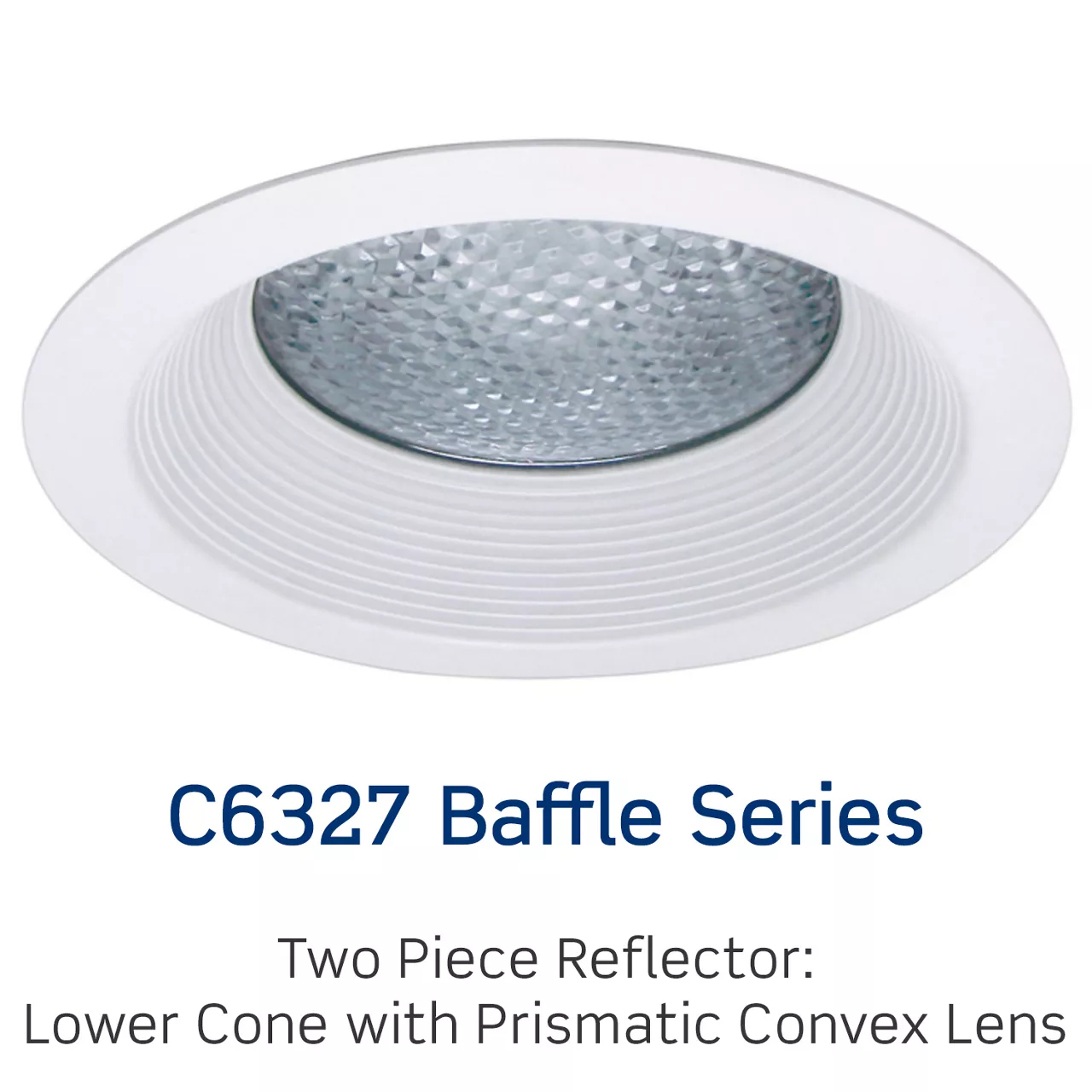

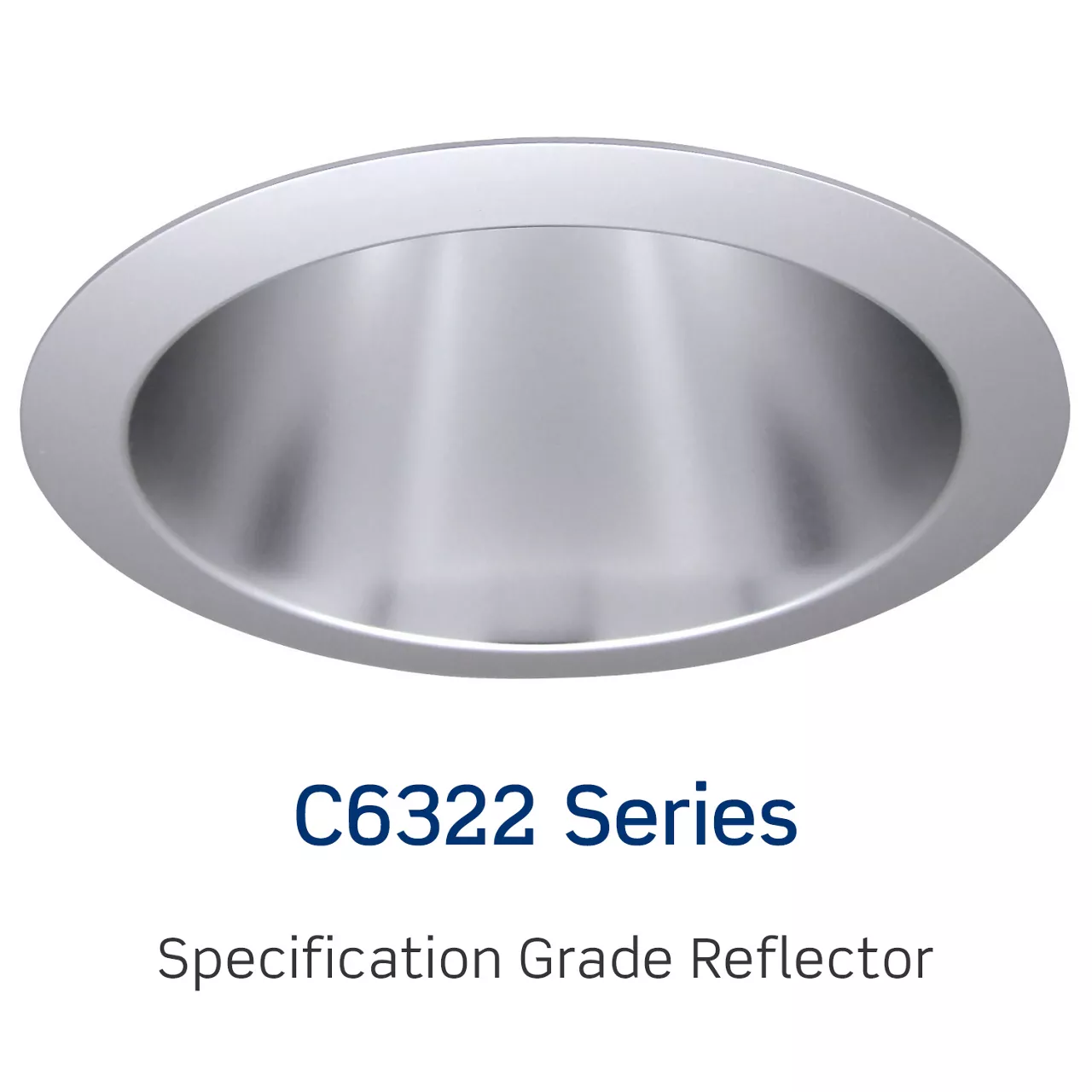

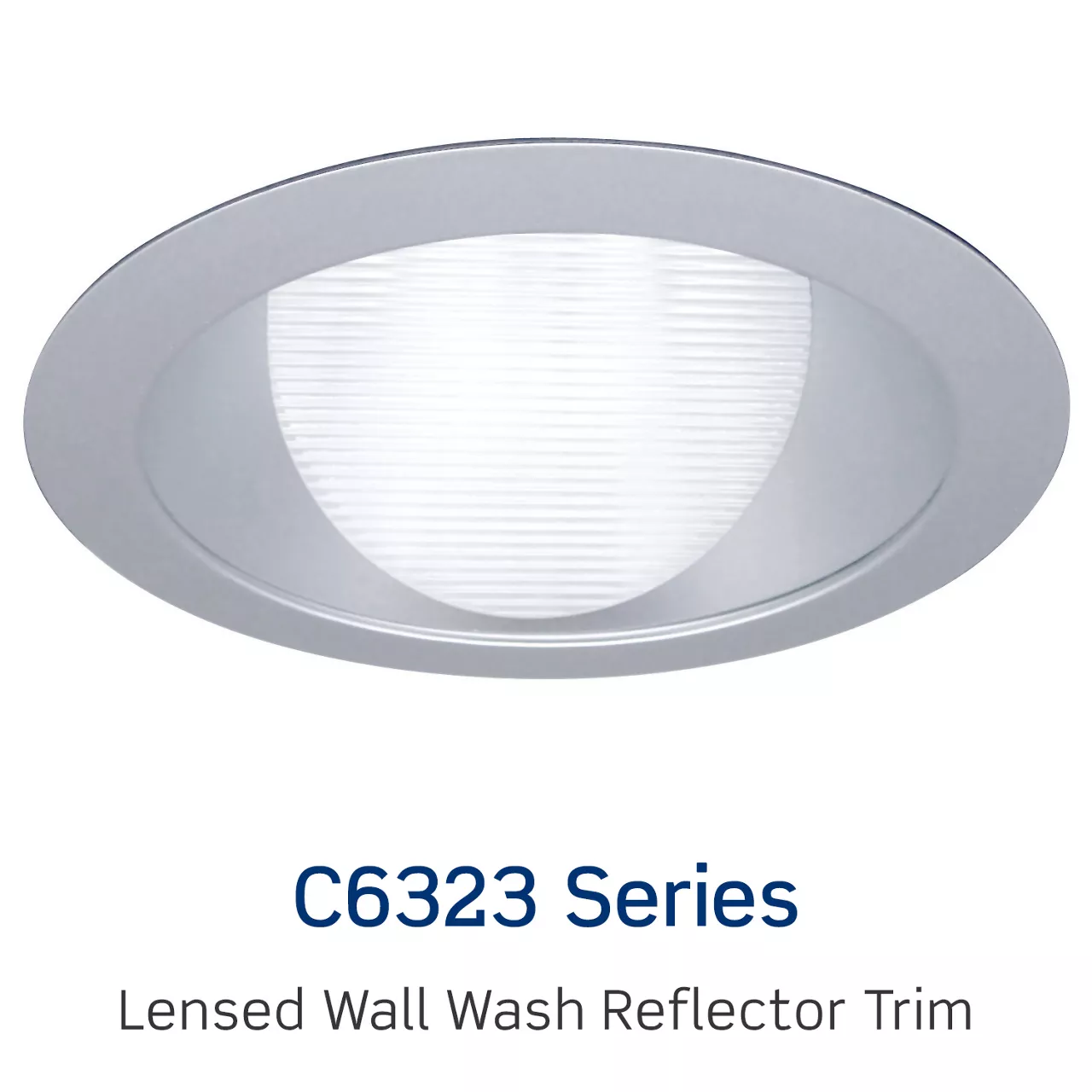

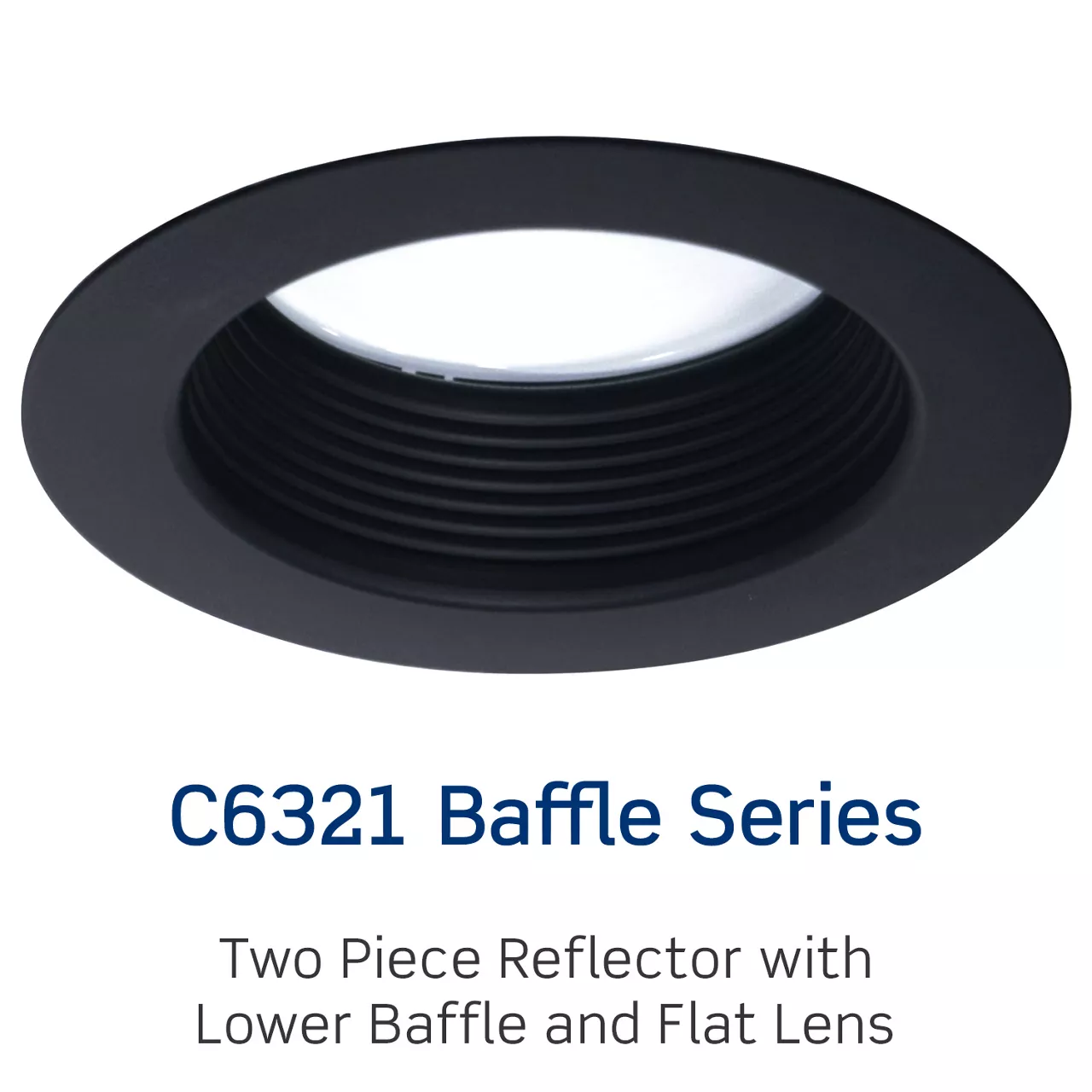

Use With : C6322 Series, C6323 Series, C6321 Cone Series,C6321 Baffle Series,C6327 Cone Series,C6327 Baffle Series
