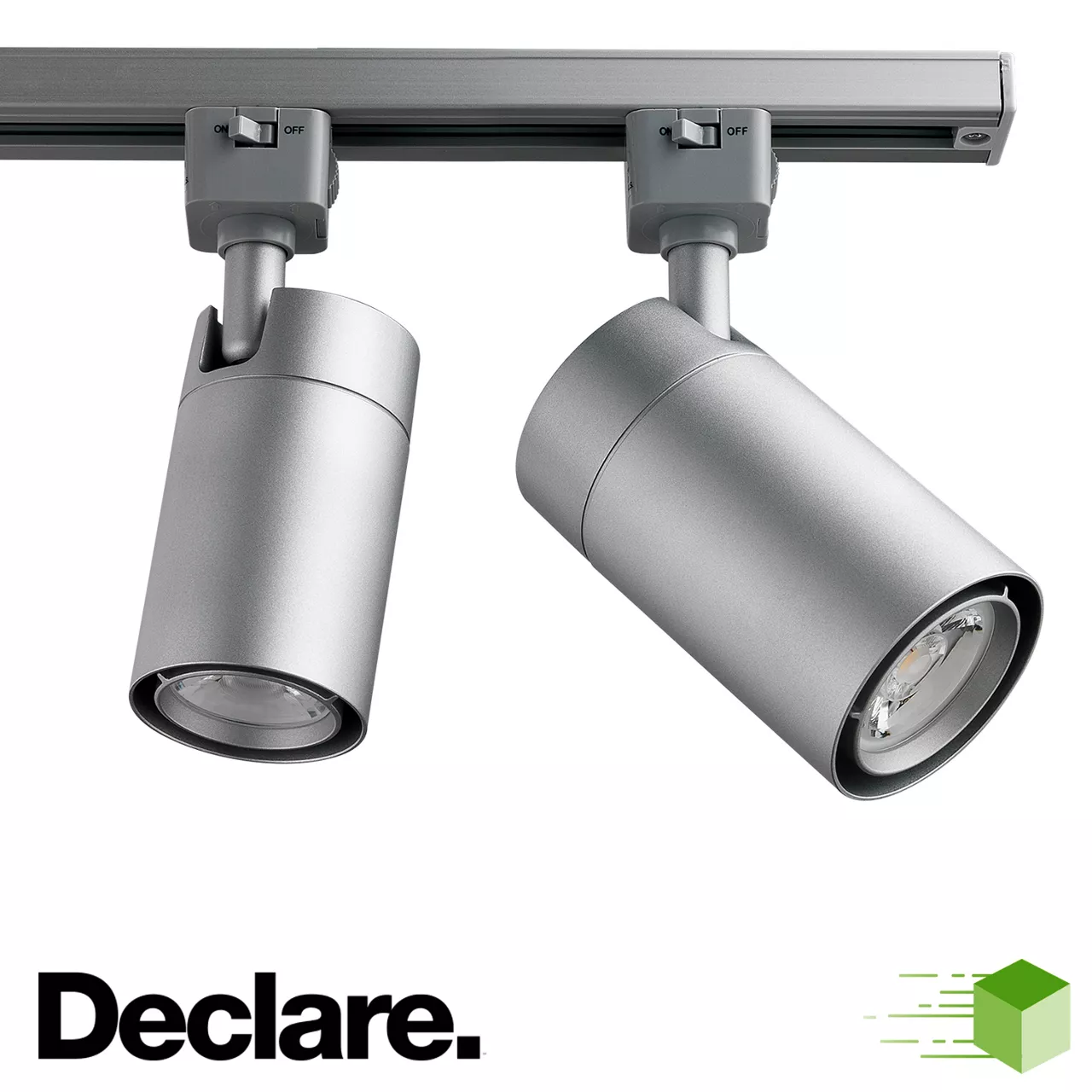

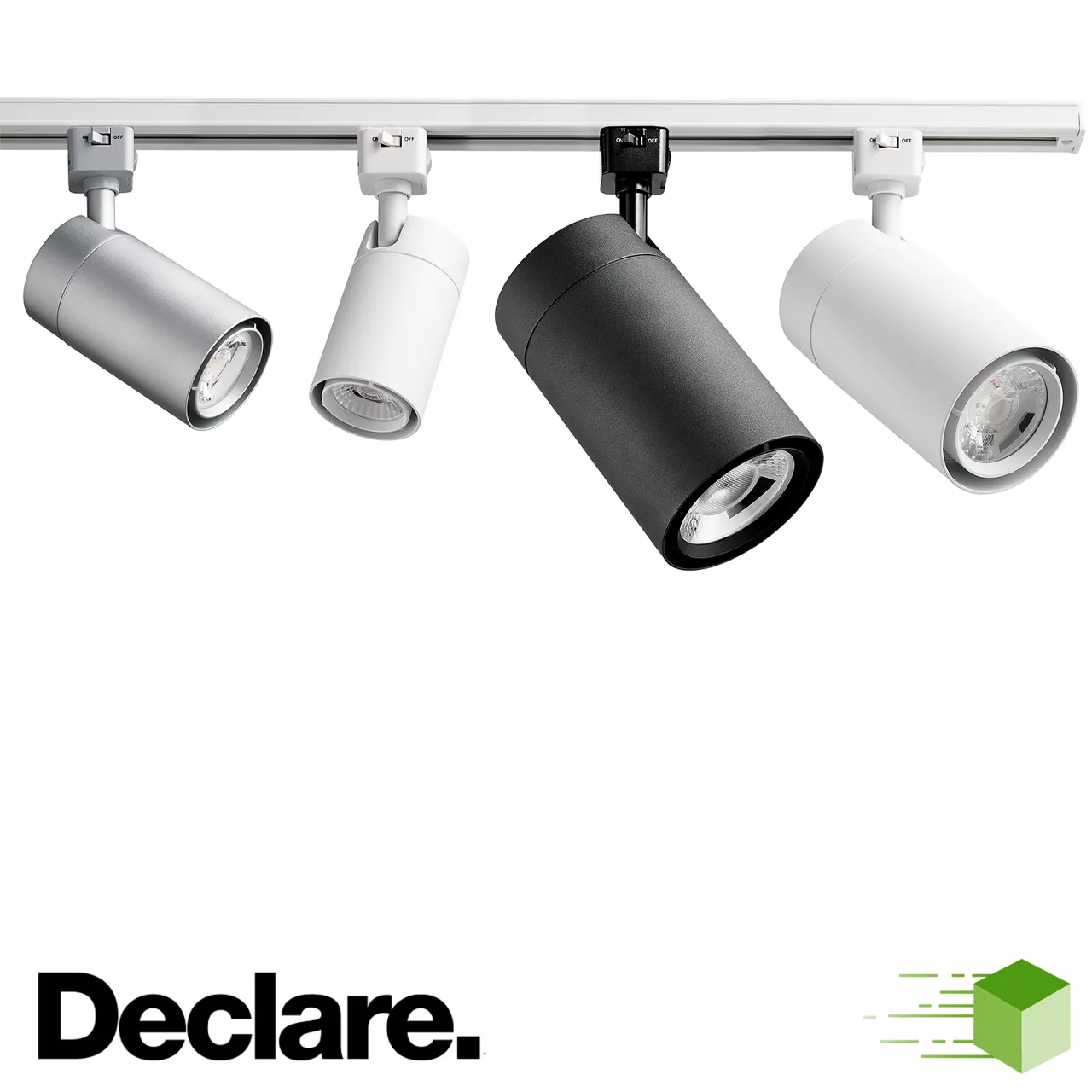

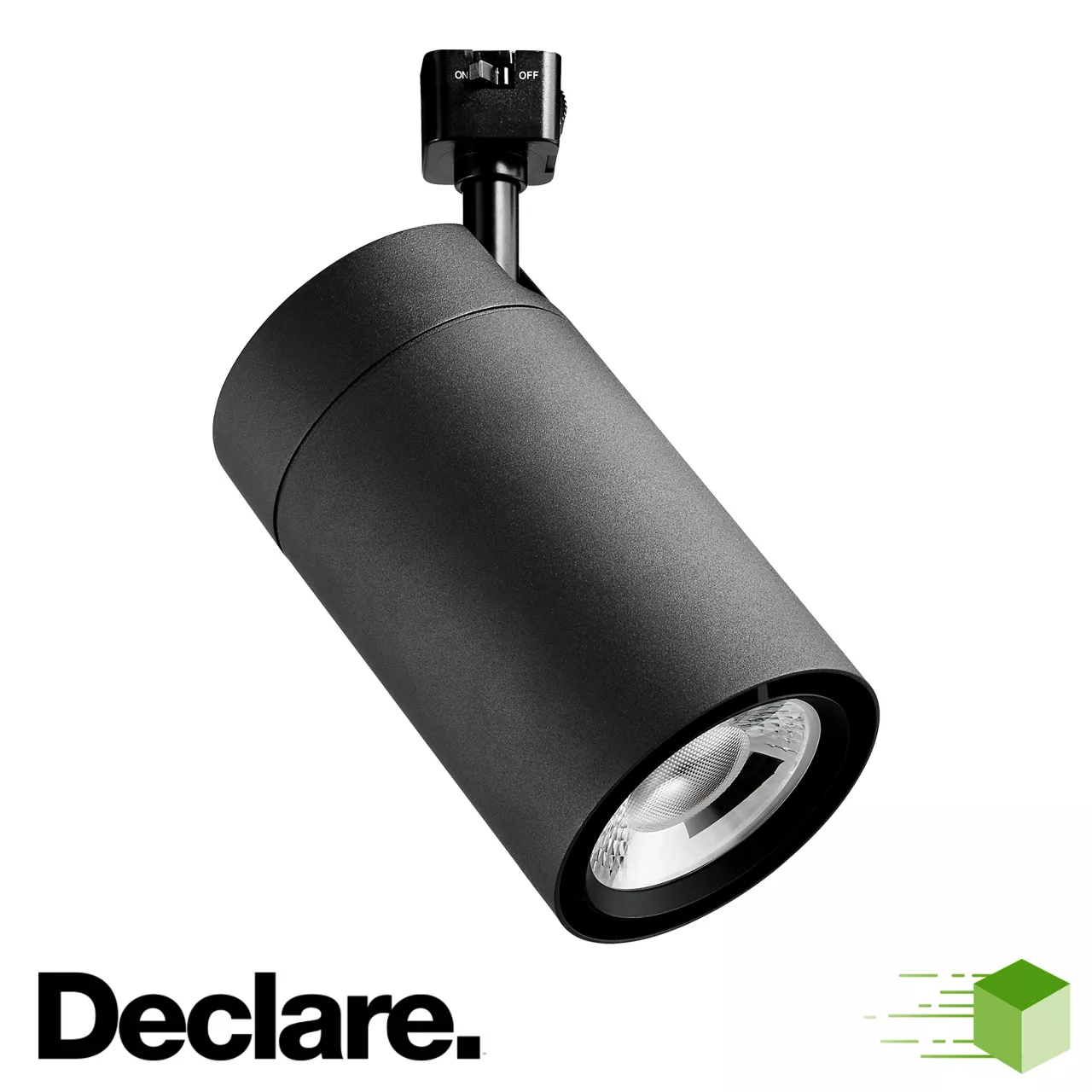

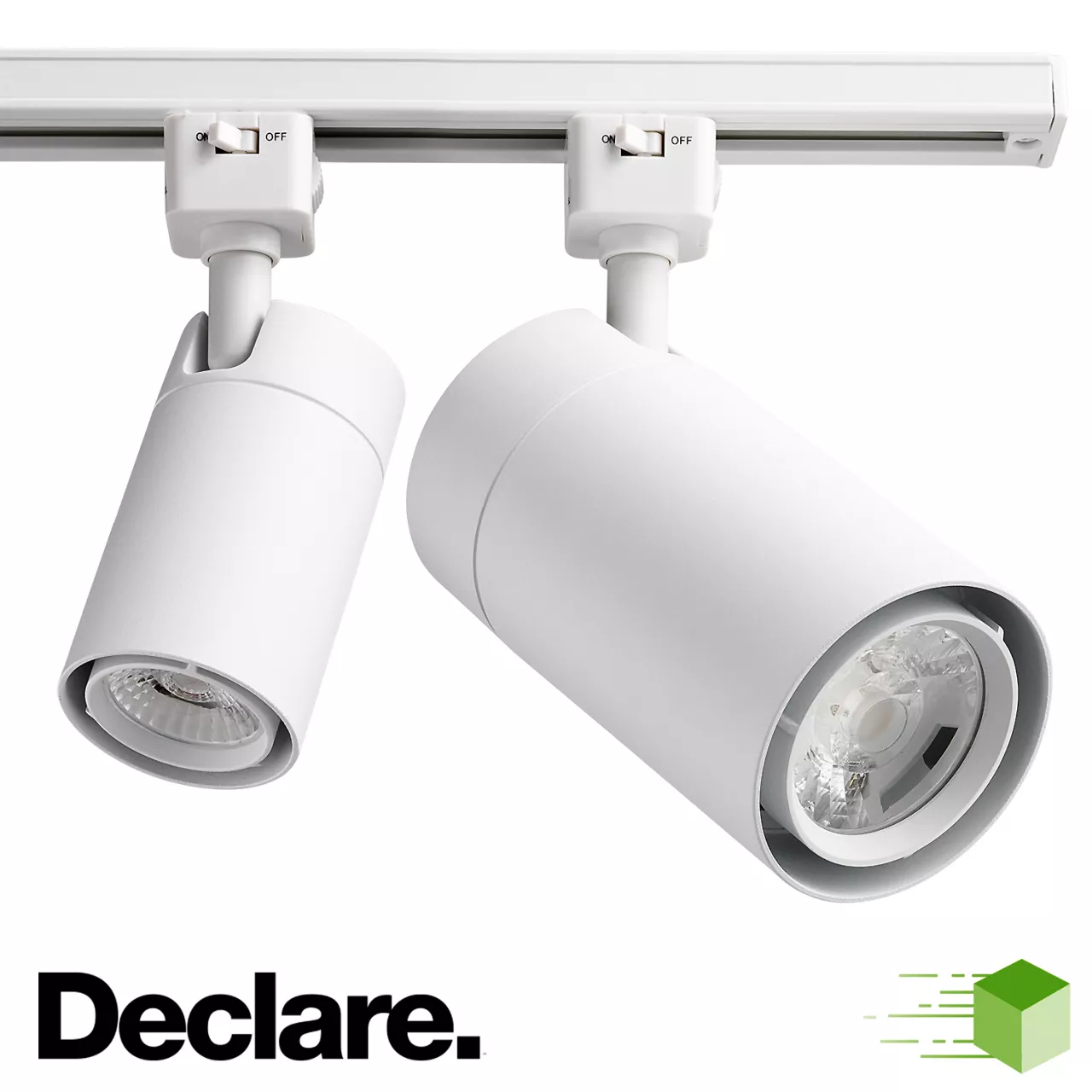

Eclipse Curve Track Luminaire
CTL905 Series
- Cylinder track luminaire family available in four (4) body sizes from 2-3/8- to 3-15/16-inch diameter, 4-3/4- to 6-7/8-inch cylinder length
- Six (6) available wattages with delivered outputs ranging from 650 to 3400 lumens at 90+ CRI
- Precision aiming adjustment. 315° aiming horizontal rotation, 90° vertical rotation
- Available in 2700K, 3000K, 3500K and 4000K
- Molded TIR optics engineered to provide smooth uniform beams available in Spot, Medium, Flood, and Wide Flood distributions
- Optics are interchangeable and can be field replaced, only upon the same size luminaire, not between luminaire sizes
- Optional accessories include snoots, barn doors, accessory holders, louvers and lenses
- Incandescent (Forward Phase) and ELV (Reverse Phase) dimming compatible
- Select Model Options are eligible for SpeedShip
- Can be used to comply with the Title 24 Part 6 JA8 High Efficacy LED Light Source Requirements
- DLC® Listed
- Declare Certified
Product Information
Updated
IES
Product Features
Product Category : Track Lighting
Product Type : LED Track Luminaire
Mounting : Track Mount
Lumen Output : 501-1000,1001-1500,1501-2000,2001-3000,3001-4000
Color Rendering Index : 90-100
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Wattage : Integrated
Light Distribution Detail : Spot,Medium,Flood,Wide Flood
Dimming Technology : Forward PhaseDimming,Reverse Phase Dimming
Compliance : cETLus,Title 24 Part 6 JA8,DLC® Listed,Declare Compliant
Compatible with : ConTech LT Single Circuit Track,ConTech LT2 Two Circuit Track,ConTech Luxbeam Track System,Juno® Lighting Trac-Master™ Systems,Halo® Power-Trac System,Halo® Lazer Track,Lightolier® Lytespan® System
Environment : Dry Location
Voltage : 120V
