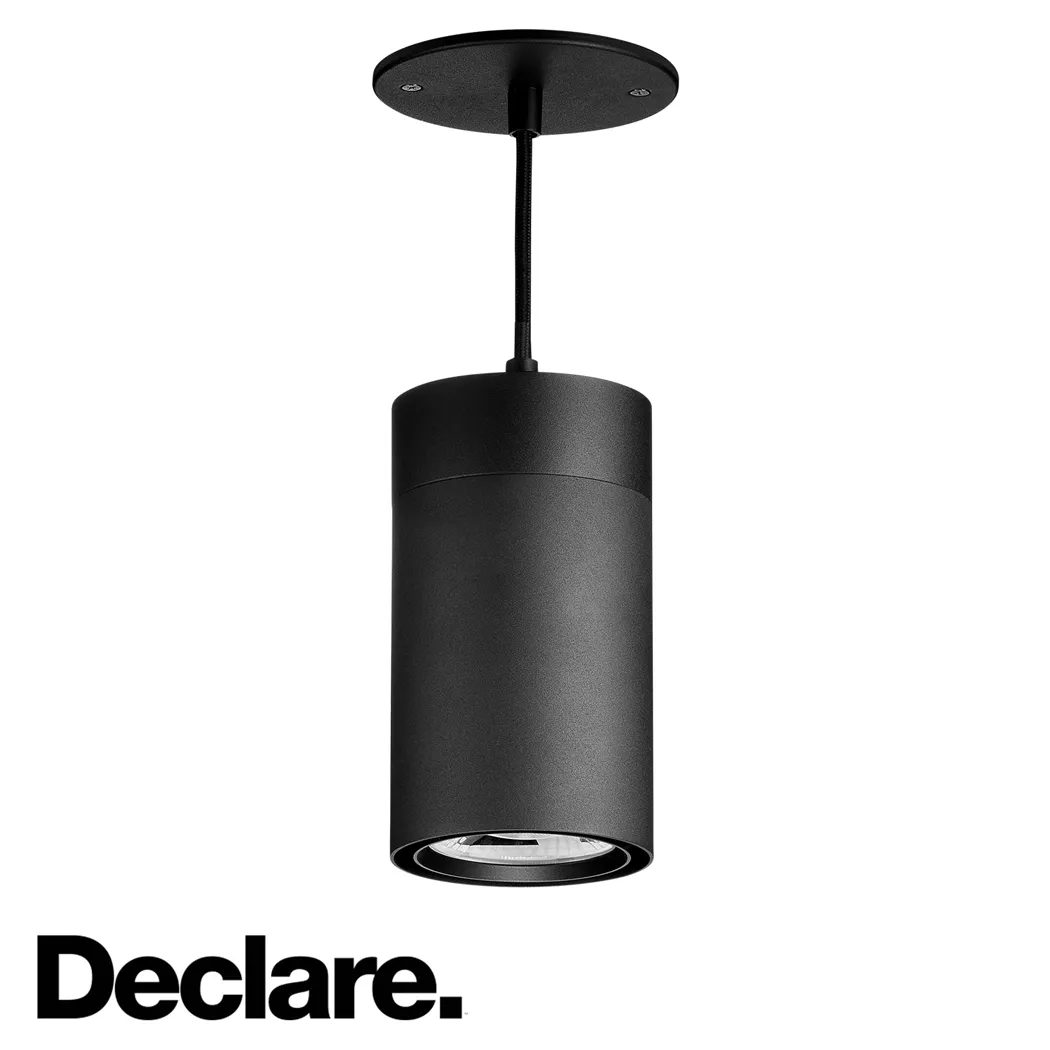

Eclipse Curve Flex Cable Mono-Point Pendant Luminaire
CTL905 Flexible Cable Series
- Flex Cable Mono-Point luminaire family available in four (4) body sizes from 2-3/8- to 3-15/16inch diameter, 4-3/4- to 6-7/8-inch cylinder length
- Six (6) wattages with delivered outputs ranging from 650 to 3400 lumens at 90+ CRI
- Includes 48-inches of field adjustable cable for pendant suspension; consult factory for pricing and lead-time for longer cable drops up to 96-inches (8 ft) maximum

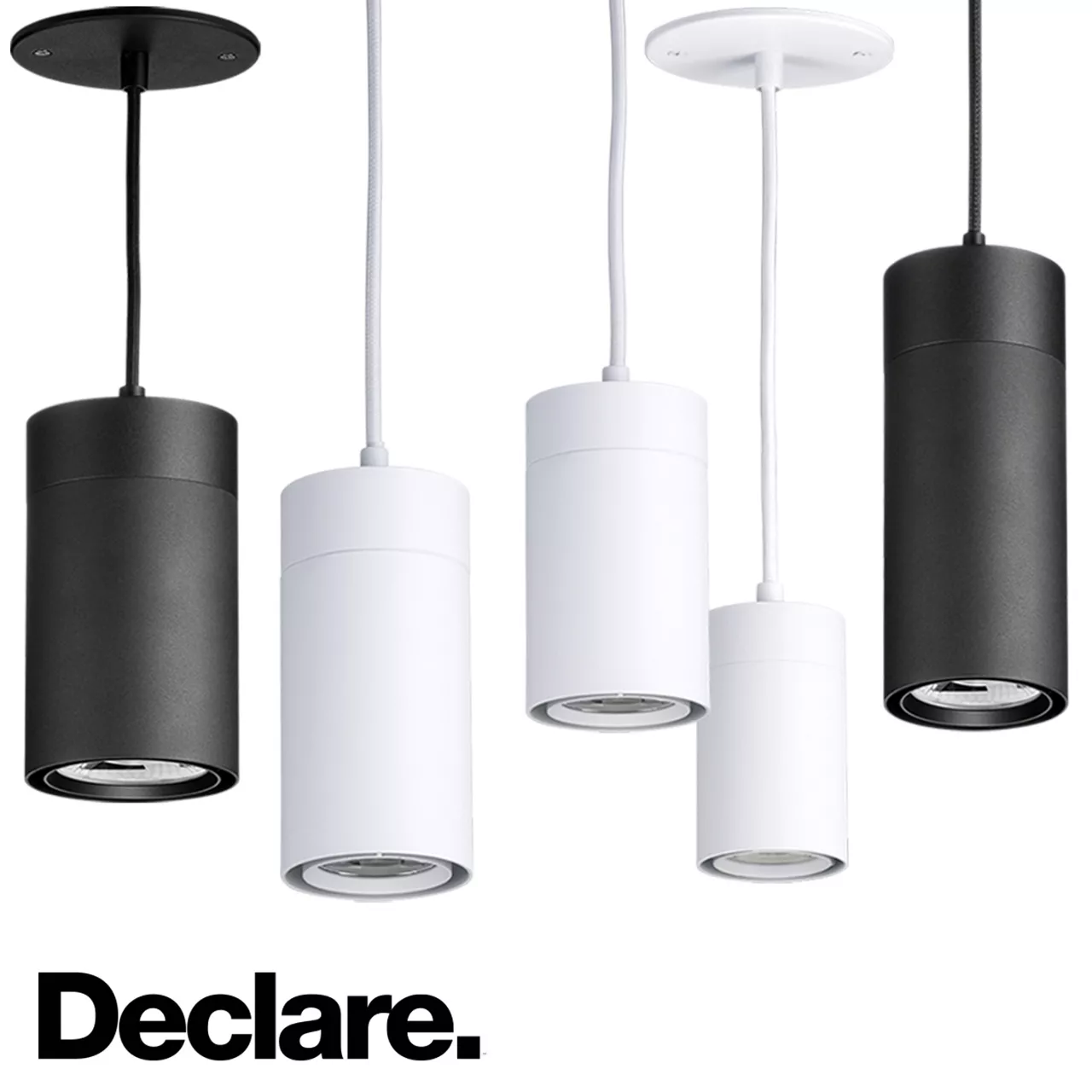

- Black Flex Cable Eclipse Cylinder luminaire provided with black fabric cord, White luminaire provided with white fabric cord and Silver luminaire provided with gray fabric cord
- Available in 2700K, 3000K, 3500K and 4000K
- Molded TIR optics engineered to provide smooth uniform beams available in Spot, Medium, Flood, and Wide Flood distributions
- Optics are interchangeable and can be field replaced, only upon the same size luminaire, not between luminaire sizes
- Optional accessories include snoots, barn doors, accessory holders, louvers and lenses
- Incandescent (Forward Phase) and ELV (Reverse Phase) dimming compatible
- Optional Track Adapter accessory available (LA-17A): wired in the field for ConTech Single- or Two-Circuit Track (LT/LT2), adapter includes integral On/Off Switch and Track Polarity Indicator
- Can be used to comply with the Title 24 Part 6 JA8 High Efficacy LED Light Source Requirements
- DLC® Listed
- Declare Certified
Product Information
Updated
IES
Product Features
Color Rendering Index : 90-100
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Driver Orientation : Integrated
Light Distribution Detail : Spot,Medium,Flood,Wide Flood
Dimming Technology : Incandescent (Forward Phase),ELV (Reverse Phase)
Lumen Output : 501-1000,1001-1500,1501-2000,2001-3000,3001-4000
Mounting Type : Mono-Point,Track Mount
Listings : cETLus for Dry Locations,Title 24 Part 6 JA8,DLC® Listed,Declare Compliant
Product Type : Pendant,Mono-Point,Track Pendant
