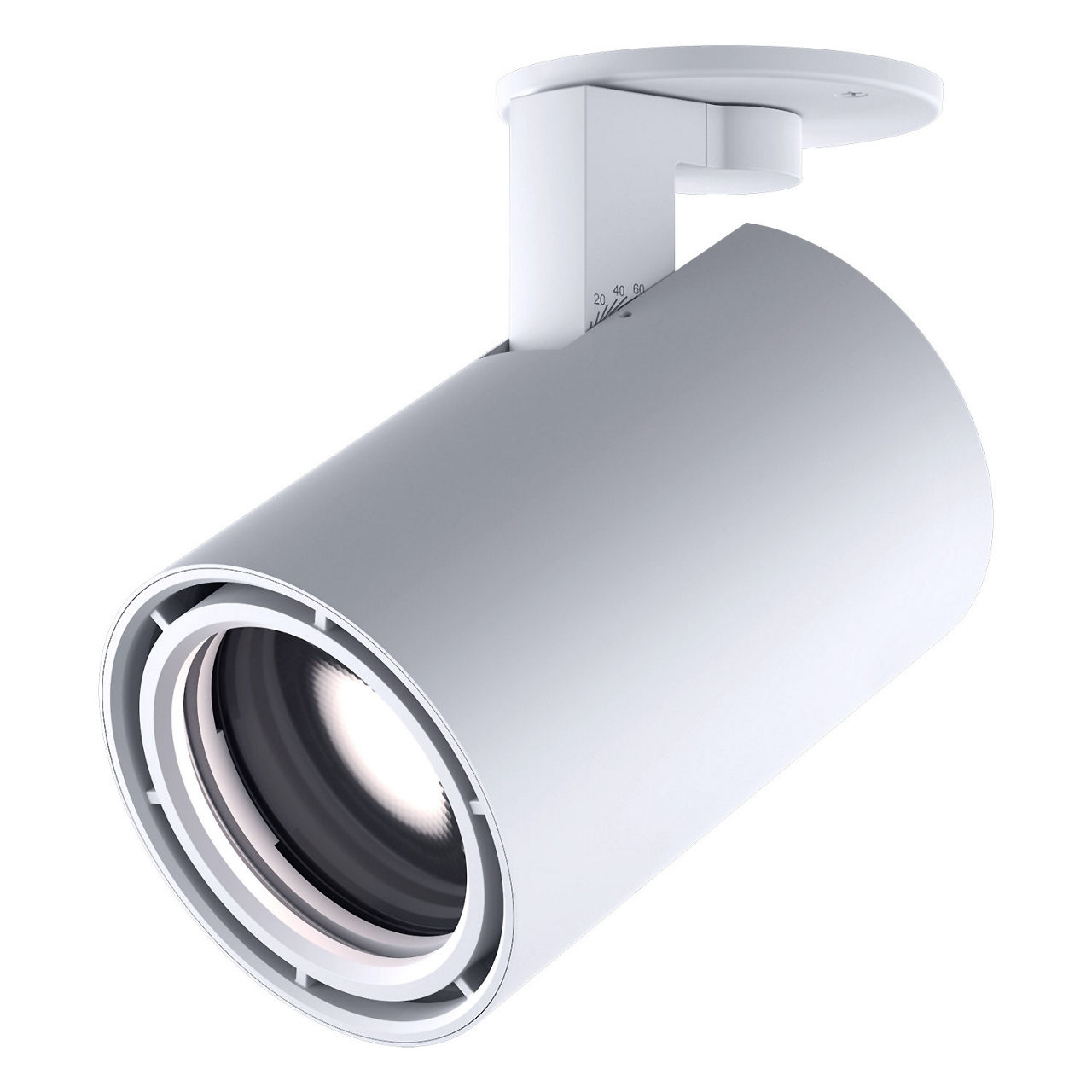

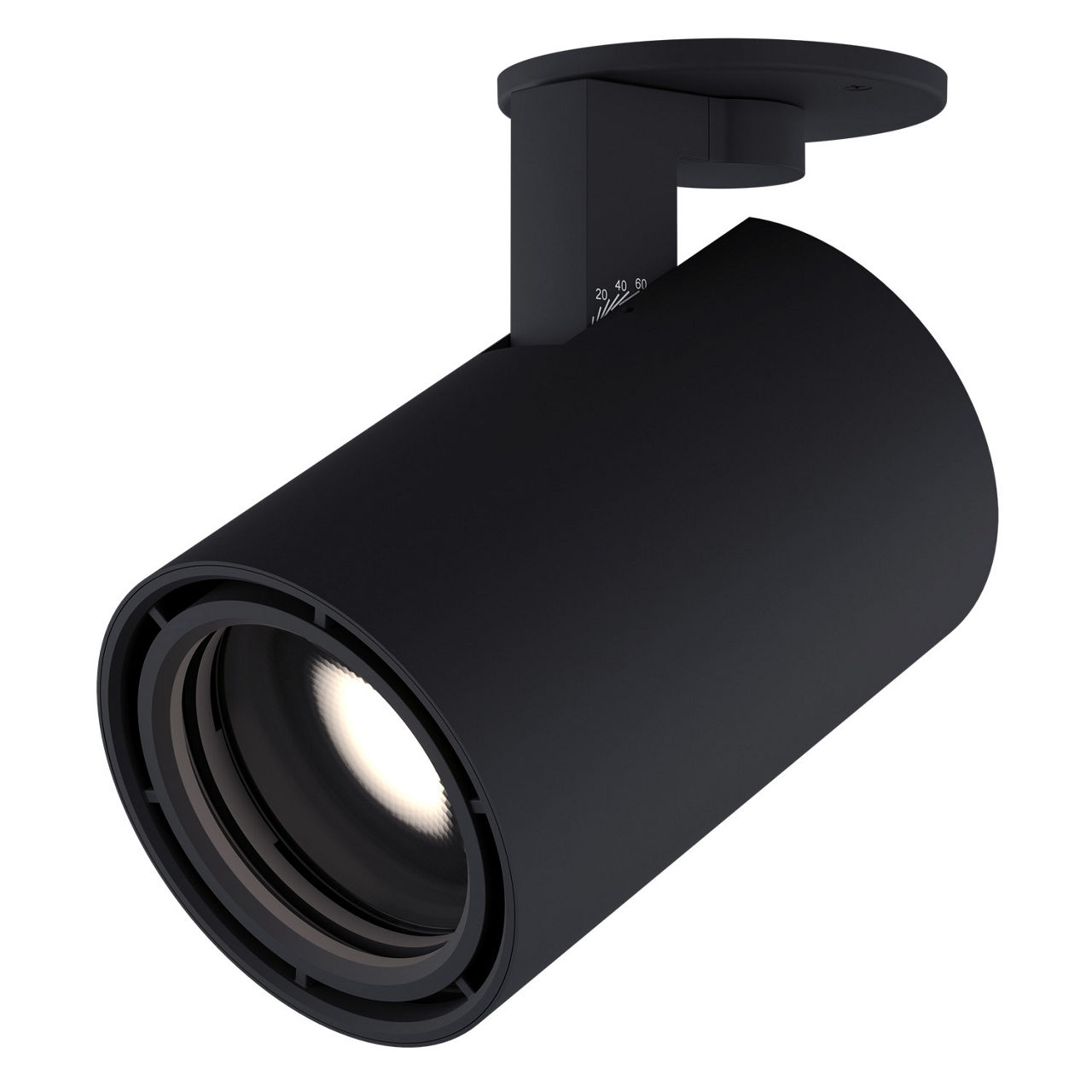

Gallery XL Canopy Mount Luminaire
CTL94*C
- Cylindrical body constructed of die-cast aluminum to provide thermal management
- Mono-Point Canopy Housing is constructed of cast aluminum, may be ceiling or wall mounted
- Lockable, precision aiming adjustment: 360°+ aiming horizontal, 220° vertical rotation
- Precision engineered Dual Lens Optic used for 8° Very Narrow Spot (VN) and 11°Narrow Spot (NS) beam distributions, providing a tight beam angle and field to highlight target objects with minimal stray illumination
- Specular Aluminum Reflectors used for 11° Spot, 22° Medium, 41° Flood, and 50° Wide Flood beam distributions; optically engineered for even illumination and glare control
- Full collection of accessories to produce a myriad of filtering and framing effects
- Luminaire can accept up to two (2) LF20 Lenses/Filters, LA-45 Honeycomb Louver, FA-94 Snoot or BD94-B Black Barn Doors, ordered separately. Snoot or Barn Door count as one (1) piece.
- Select from 2700K, 3000K, 3500K and 4000K color temperatures; CRI of 80 min., 83 typical; high CRI of 90+ available
- Dimming is standard for all wattage options using compatible 120V Forward/Reverse Phase or 120/277V 0-10V dimming systems. For dimmer compatibility and performance, refer to Specification sheet.
Product Information
Product Features
Product Type : Mono-Point
Light Source : LED
Environment : Dry Location
Color Rendering Index : 80-89,90-100
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Dimming Technology : Forward Phase (120V Only),Reverse Phase (120V Only
Light Distribution Detail : Very Narrow Spot,Narrow Spot,Spot,Medium,Flood,Wide Flood
Lumen Output : 500-1000,1001-1500,1501-2000,2001-3000,3001-4000,4001-5000
Compliance : ENERGY STAR® Certified
Wattage : 11W - 20W,21W - 30W,31W - 40W,41W - 50W
Voltage : 120V
Use With : Single Circuit Track (LT or Luxbeam),Two-Circuit Track (LT or Luxbeam)
Family : Gallery XL
Finish : Black,White,Silver
